AL Oil Mist Lubricator | High-Efficiency Pneumatic Lubrication Unit
AL oil mist lubricator provides consistent lubrication, leak-proof performance, and long-lasting durability for industrial pneumatic automation systems.

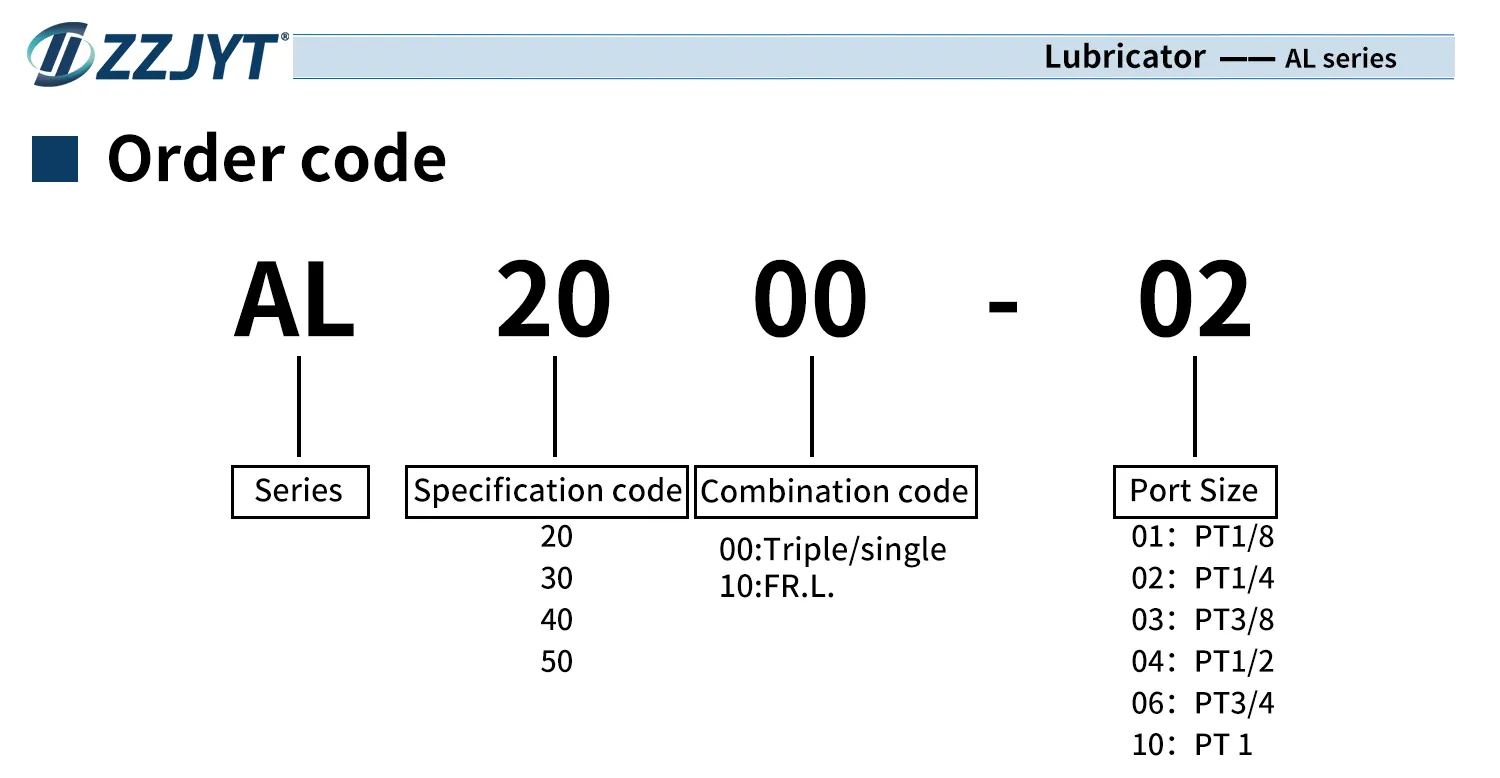

| Model | AL1000-M5 | AL2000-01 | AL2000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 |
| Port Size | M5x0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 |
| Rated Flow | 95 | 800 | 800 | 1700 | 1700 | 5000 | 5000 | 6300 | 7000 | 7000 |
| Working Media | Clean Air | |||||||||
| Proof Pressure | 1.5Mpa | |||||||||
| Max.Working Pressure | 0.85Mpa | |||||||||
| Ambient Temperature | 5~60℃ | |||||||||
| Suggested Lubricating Oil | Turbine No.1 Oil | |||||||||
| Body Material | Aluminum Alloy | |||||||||
| Cup Cover | AL1000~2000 WITHOUT AL3000~5000 WITH (Steel) | |||||||||

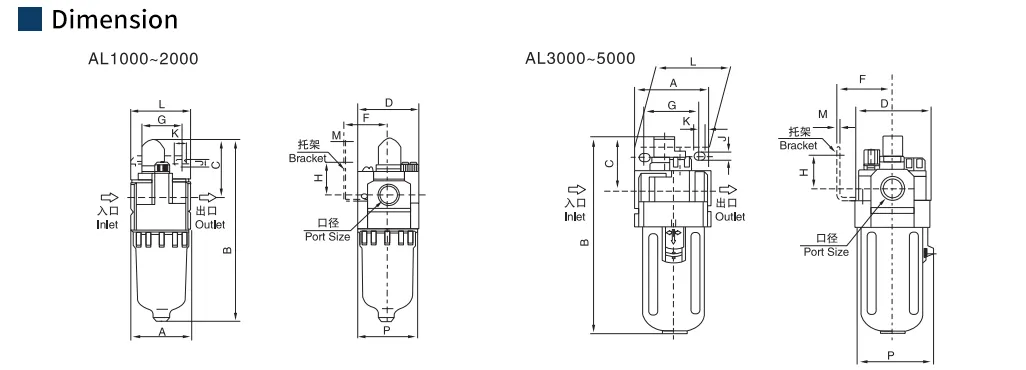

| Model | Port Size | A | B | C | D | F | G | H | J | K | L | M | P |
| AL1000 | M5x0.8 | 25 | 81.5 | 25.5 | 25 | _ | _ | _ | _ | _ | _ | _ | 27 |
| AL2000 | PT1/8,PT1/4 | 40 | 123 | 39 | 40 | 30.5 | 27 | 22 | 5.5 | 8.5 | 40 | 2 | 40 |
| AL3000 | PT1/4,PT3/8 | 53 | 141 | 38 | 52.5 | 41.5 | 40 | 24.5 | 6.5 | 8 | 53 | 2 | 55.5 |
| AL4000 | PT3/8,PT1/2 | 70.5 | 178 | 41 | 69 | 50.5 | 42.5 | 26 | 8.5 | 10.5 | 71 | 2.5 | 73 |
| AL4000-06 | PT3/4 | 75 | 179.5 | 39 | 70 | 50.5 | 42.5 | 24 | 8.5 | 10.5 | 59 | 2.5 | 74 |
| AL5000 | PT3/4,PT1 | 90 | 248 | 46 | 90 | 57.5 | 54.5 | 30 | 8.5 | 10.5 | 71 | 2.5 | 80 |
