LOE Series Oil Mist Lubricator | Durable Air Line Lubricator for Automation
LOE series oil mist lubricator designed for accurate oil delivery and maintenance-free operation. Suitable for pneumatic lines, cylinders, and industrial automation equipment.
| General technical data | ||||||||||||
| Size | Mini | Midi | Maxi | |||||||||
| Pneumatic connection | G1/8,G1/4,G3/8 | G1/4,G3/8,G1/2,G3/4 | G1/2,G3/4,G1 | |||||||||
| Design | Proportional standard mist lubricator | |||||||||||
| Type of mounting | Via accessories | |||||||||||
| In-line installation | ||||||||||||
| Mounting position | Vertical :5° | |||||||||||
| Bowl guard | Metal bowl guard | |||||||||||
| Minimum flow rate for lubricator {l/min} function | 3 | 8 | 10 | |||||||||
| Max. oil capacity{cm3} | 45 | 110 | 190 | |||||||||

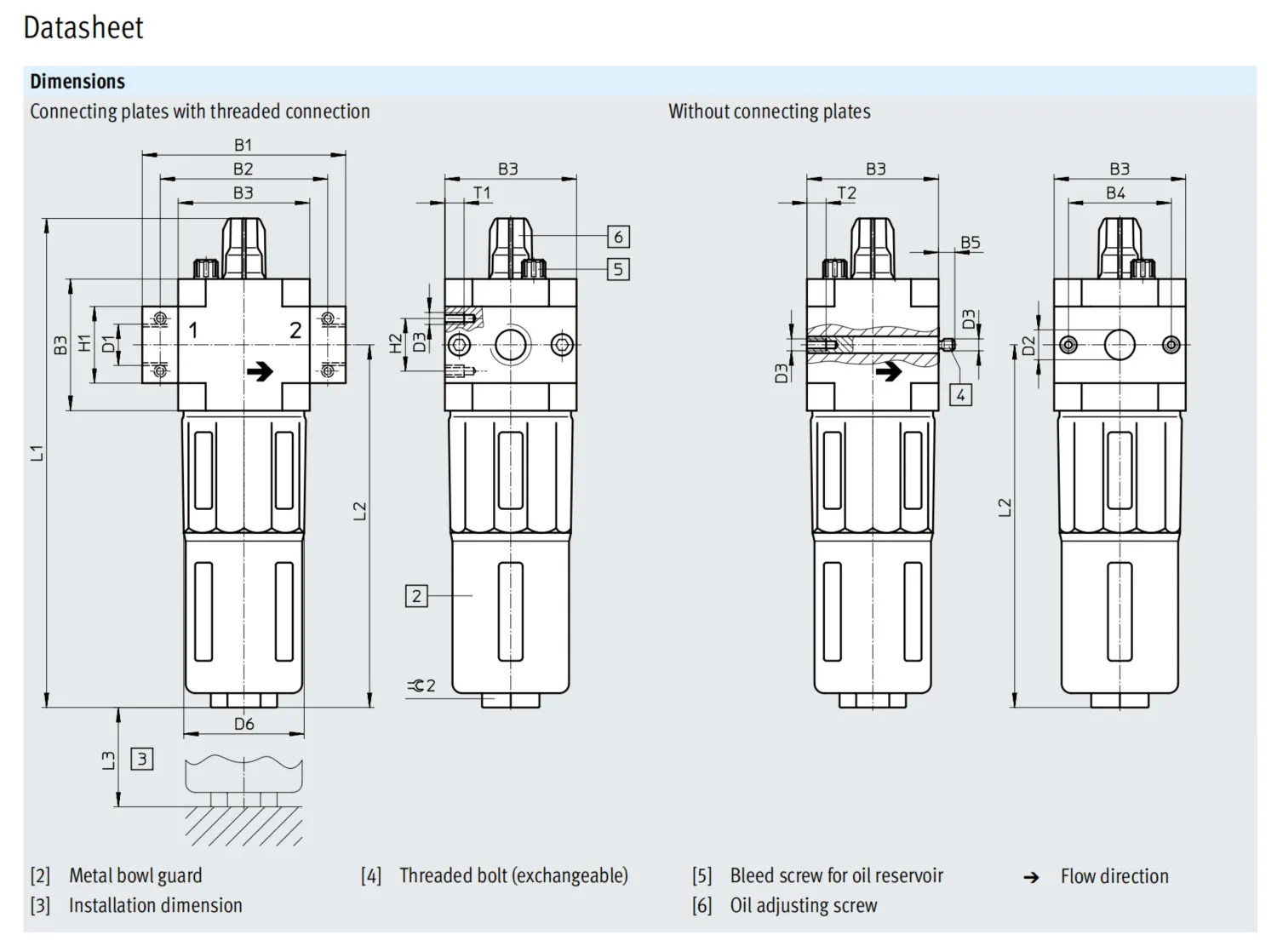

| Type | B1 | B2 | B3 | B4 | B5 | D1 | D2 ∅ | D3 | D6 ∅ | H1 | H2 | L1 | L2 | L3 | T1 | T2 | 2 |
| Mini | |||||||||||||||||
| LOE-1/8-D-MINI | 64 | 52 | 40 | 30 | – | G1/8 | – | M4 | 38 | 20 | 11 | 169 | 124 | 100 | 7 | – | 22 |
| LOE-1/4-D-MINI | G1/4 | ||||||||||||||||
| LOE-3/8-D-MINI | 70 | G3/8 | |||||||||||||||
| Midi | |||||||||||||||||
| LOE-1/4-D-MIDI | 80 | 70 | 55 | 43 | – | G1/4 | – | M5 | 52 | 32 | 22 | 204 | 151 | 120 | 8 | – | 24 |
| LOE-3/8-D-MIDI | G3/8 | ||||||||||||||||
| LOE-1/2-D-MIDI | G31/2 | ||||||||||||||||
| LOE-3/4-D-MIDI | G3/4 | ||||||||||||||||
| Maxi | |||||||||||||||||
| LOE-1/2-D-MAXI | 96 | 80 | 66 | 46 | – | G1/2 | – | M5 | 65 | 32 | 22 | 228 | 170 | 150 | 8 | – | 24 |
| LOE-3/4-D-MAXI | G3/4 | ||||||||||||||||
| LOE-1-D-MAXI | 116 | 91 | G1 | 40 | |||||||||||||
