| Model | AR1000-M5 | AR2000-01 | AR2000-02 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 |
| Port Size | M5x0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | PT3/4 | PT3/4 | PT1 |
| Pressure Gauge Port Size | M5x0.8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/4 | PT1/4 | PT1/4 | PT1/4 | PT1/4 |
| Rated Flow(L/Min) | 100 | 550 | 550 | 2500 | 2500 | 6000 | 6000 | 6000 | 8000 | 8000 |
| Working Media | Compressed Air | |||||||||
| Proof Pressure | 1.5MPa | |||||||||
| Ambient Temperature | 5~60℃ | |||||||||
| Pressure Range | 0.05~0.7MPa | 0.05~0.85MPa | ||||||||
| Body Material | Aluminum Alloy | |||||||||

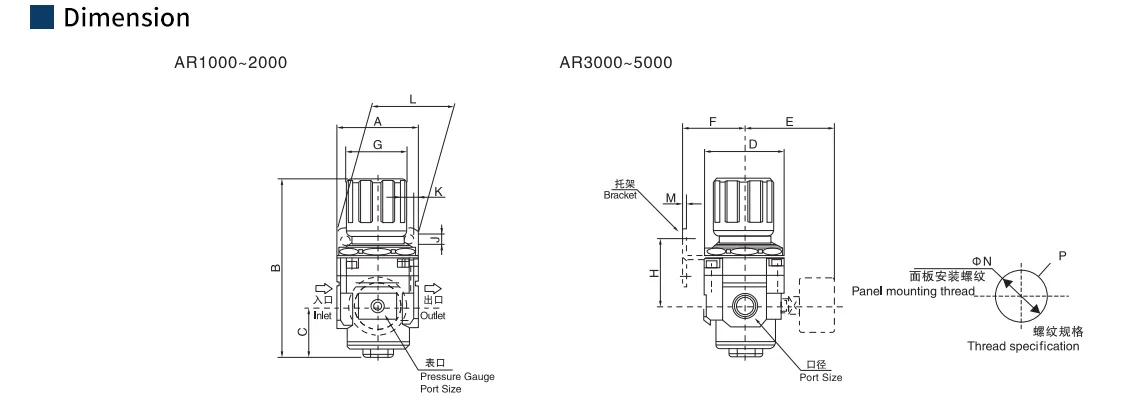

| Model | Port Size | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
| AR1000 | M5x0.8 | 25 | 58.5 | 12 | 25 | 26 | 25 | 29 | 30 | 4.5 | 6.5 | 40.5 | 2 | 20.5 | M20X1.0 |
| AR2000 | PT1/8,PT1/4 | 40 | 91 | 17 | 40 | 50 | 31 | 34 | 43 | 5.5 | 15.5 | 55 | 2 | 33.5 | M33X1.5 |
| AR2500 | PT1/4,PT3/8 | 53 | 99.5 | 25 | 48 | 53 | 31 | 34 | 43 | 5.5 | 15.5 | 55 | 2 | 42.5 | M33X1.5 |
| AR3000 | PT1/4,PT3/8 | 53 | 124 | 35 | 53 | 56 | 41 | 40 | 46.5 | 6.5 | 8 | 53 | 2.5 | 52.5 | M42X1.5 |
| AR4000 | PT3/8,PT1/2 | 70.5 | 145.5 | 37 | 70 | 63 | 50 | 54 | 54 | 8.5 | 10.5 | 70.5 | 2.5 | 52.5 | M52X1.5 |
| AR4000-06 | PT3/4 | 75 | 151 | 40 | 70 | 68 | 50 | 54 | 56 | 8.5 | 10.5 | 70.5 | 2.5 | 52.5 | M52X1.5 |
| AR5000 | PT3/4,PT1 | 90 | 163.5 | 48 | 90 | 72 | 54 | 54 | 65.8 | 8.5 | 10.5 | 70.5 | 2.5 | 52.5 | M52X1.5 |
