AFR.BFR Series
  1. The structure is delicate and compact, which is convenient for installation and application.
  2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
  3. The pressure loss is low and the efficiency of water separating is high;
Request Quote

Product Details

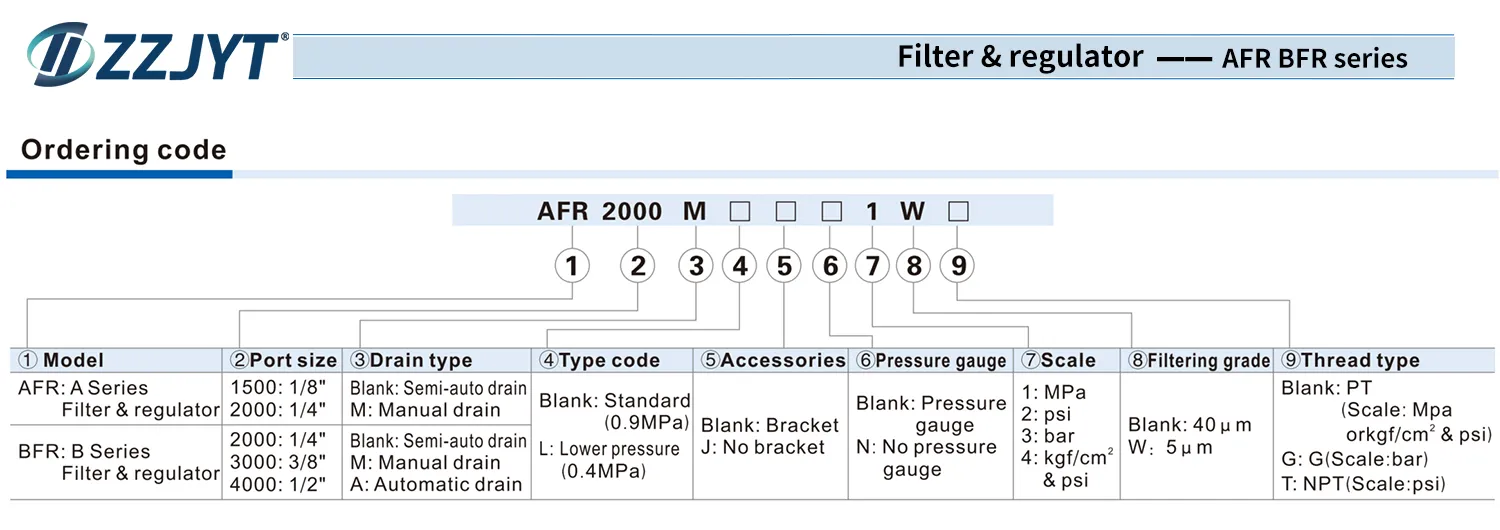

ModalAFR1500AFR2000BFR2000BFR3000BFR4000
FluidAir
Port size1/8″1/4″1/4″3/8″1/2″
Filtering grade40 μ m or 5 μ m
Pressure rangeSemi-auto and automatic drain:0.15~0.9Mpa(20~130Psi)                                         Manual drain:0.05~0.9Mpa(7~130Psi)
Max.pressure1.0Mpa(145Psi)
Proof pressure1.5Mpa(215Psi)
Temperature range -5~70℃（unfreeze)
Capacity of drain bowl15CC60CC
