1. PA12、PA6 Nylon tubing has excellence capability to be used high temperatureconditions widely.

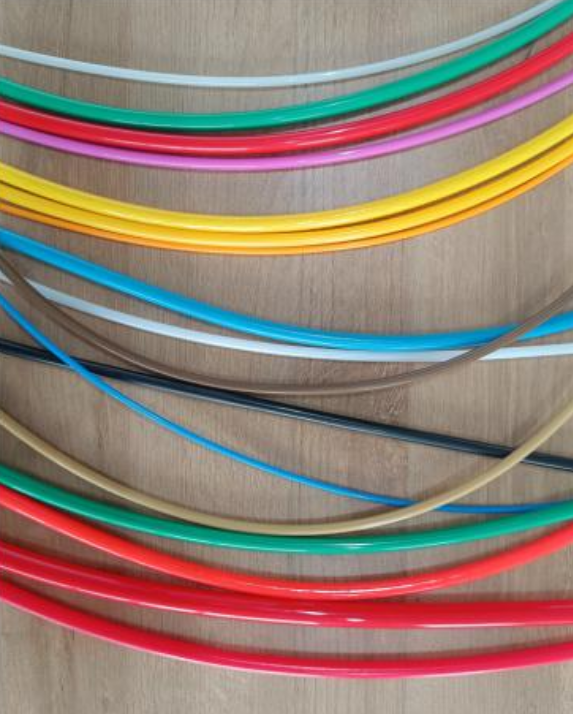

2.Many kinds of colors to be chosned.
3.Steady size, Little osmotic rate.
4. Be used widely for it’s aging resistant, good anti-oil,and high temperatureresistant capability.
| Specification parameters | |||||
| Working temperature: -30-120 ℃ | |||||
| Work pressure: 0-2.0MPa | |||||
| Blasting pressure: 4.5-6.8MPa | |||||
| Bending degree: 18-50mm |
| Nylon hose | ||||
| Product photo | Colour | Tubing O.D | Tubing I.D | Model |

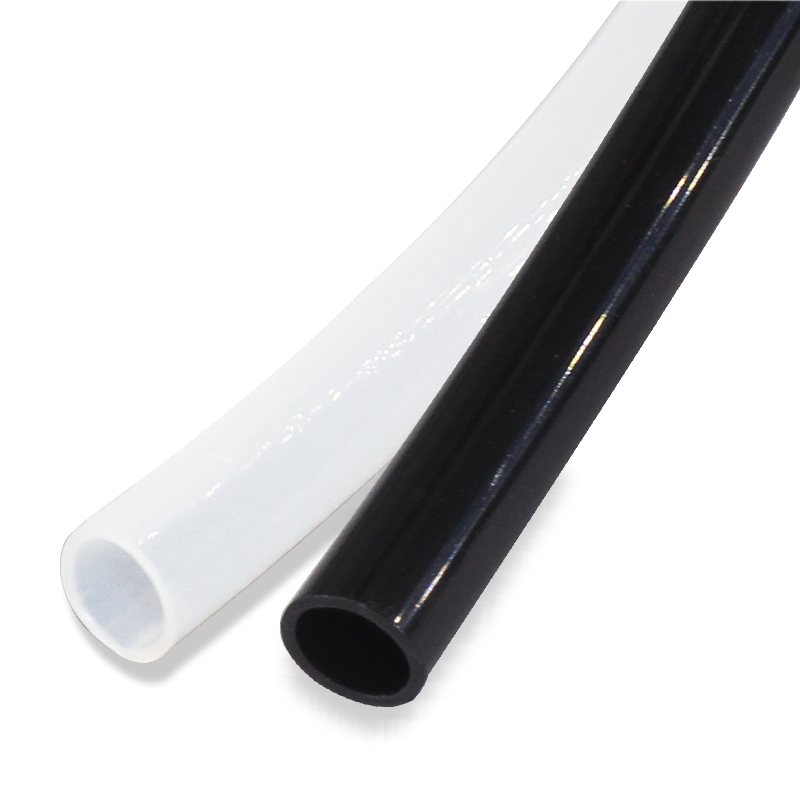

 | Standard colors: Black, White Accept customized colors | Φ4 | Φ2 | PA4X2 |
| Φ4 | Φ2.5 | PA4X.25 | ||
| Φ5 | Φ3 | PA5X3 | ||
| Φ6 | Φ4 | PA6X4 | ||
| Φ8 | Φ6 | PA8X6 | ||
| Φ10 | Φ7.5 | PA10X75 | ||
| Φ10 | Φ8 | PA10X8 | ||
| Φ12 | Φ9 | PA12X9 | ||
| Φ12 | Φ10 | PA12X10 | ||
| Φ14 | Φ11 | PA14X11 | ||
| Φ16 | Φ12 | PA16X12 | ||
| Φ16 | Φ13 | PA16X13 | ||
