The 4F (5/2-way) foot valve has the following characteristics:
1、 Unique operating method
Foot pedal control: Operating by stepping on the feet frees up both hands, allowing operators to easily control the opening and closing of valves through foot movements while performing other work tasks with both hands, greatly improving work efficiency.
Easy to operate: The pedal strength and stroke design are reasonable, making it easy and effortless to operate without excessive physical exertion. Even if used for a long time, it is not easy to feel tired.
2、 Reliable performance
Good sealing performance: High quality sealing materials are used to ensure effective prevention of fluid leakage under various working pressures, ensuring the stability and safety of the system.
Strong durability: The valve body and internal components are made of high-strength materials, which can withstand high pressure and frequent operation, and have a long service life.

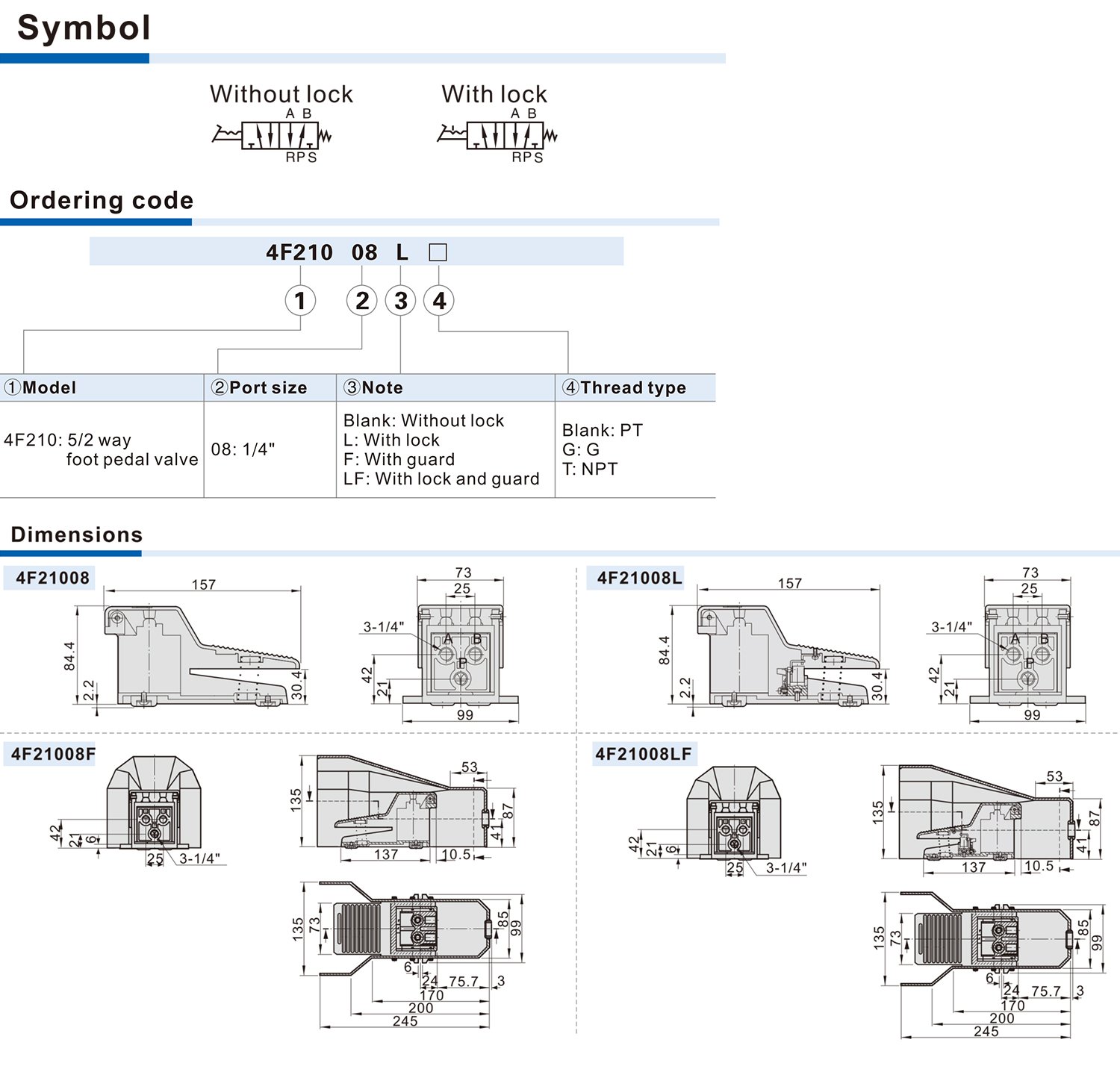

| Modal | 4F210-08 | 4F210-08L | 4F210-08F | 4F210-08LF |
| Fluid | Air (to be filtered by 40 u m filter element) | |||
| Operating | Acting type controlled by foot | |||
| Port size | 1/4″ | |||
| Valve type | 5/2 way | |||
| Pressure Range | 0~1.0MPa(0~145psi) | |||
| Proof pressure | 1.5MPa(215psi) | |||
| Temperature | -20~70℃ | |||
| Material body | Aluminum alloy | |||
