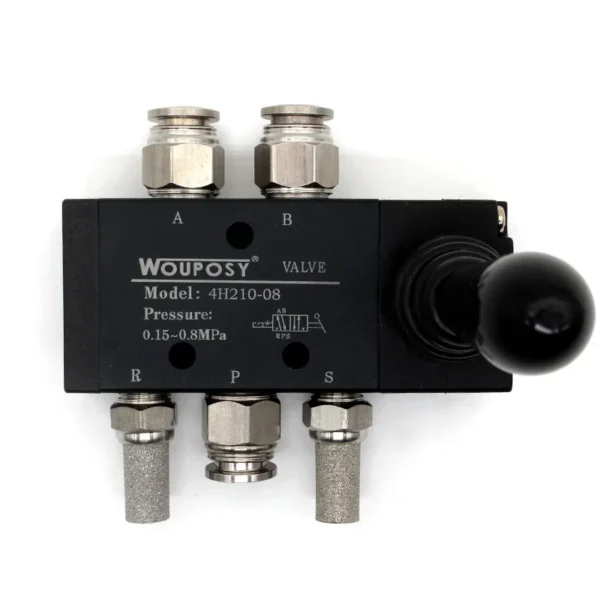

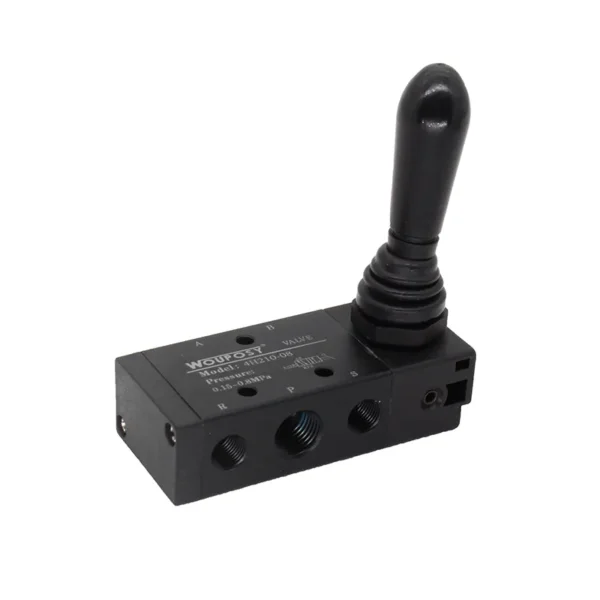

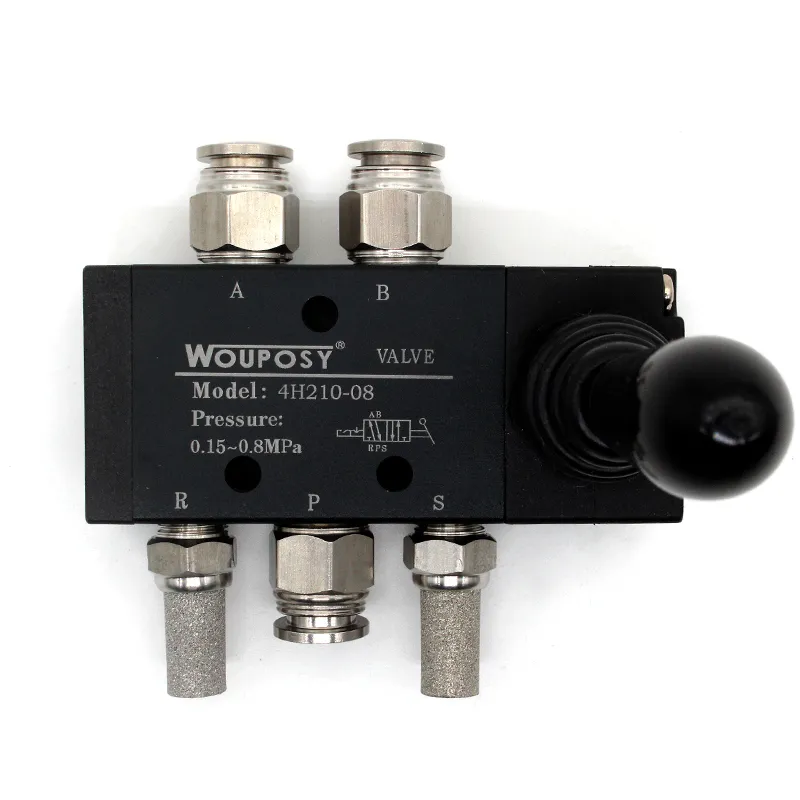

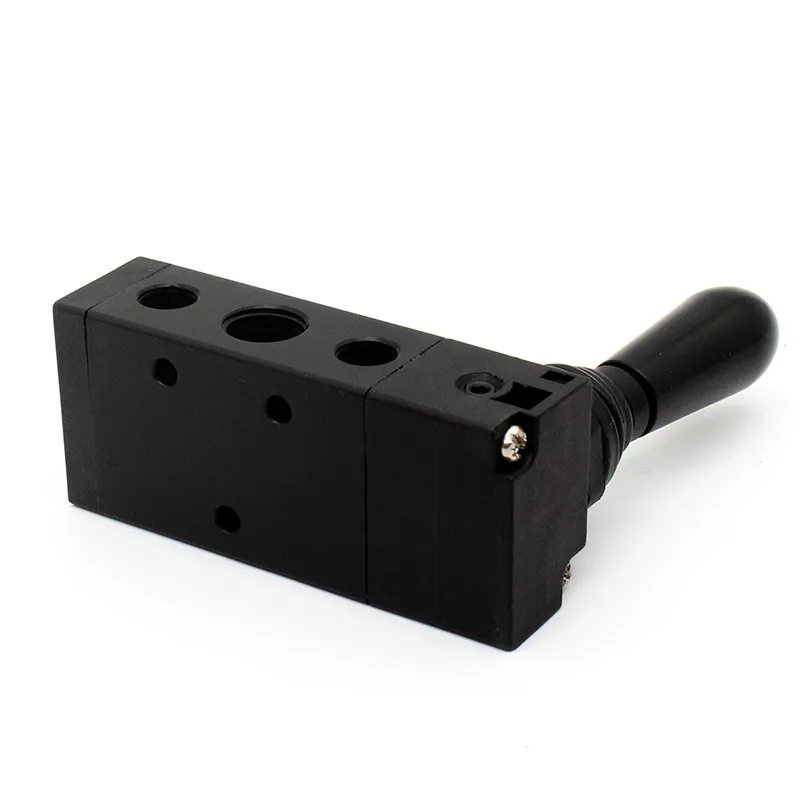

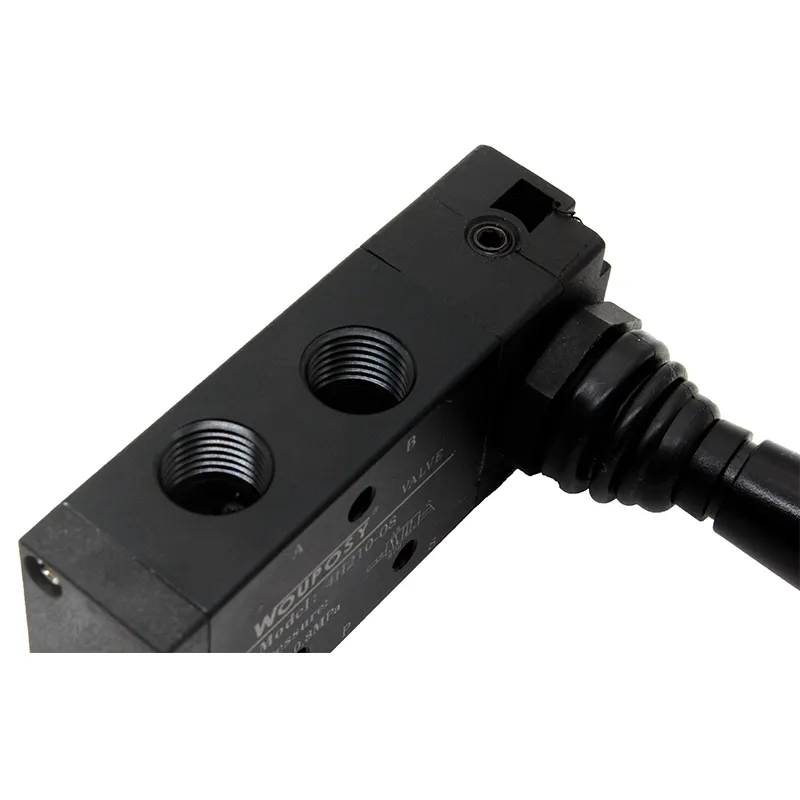

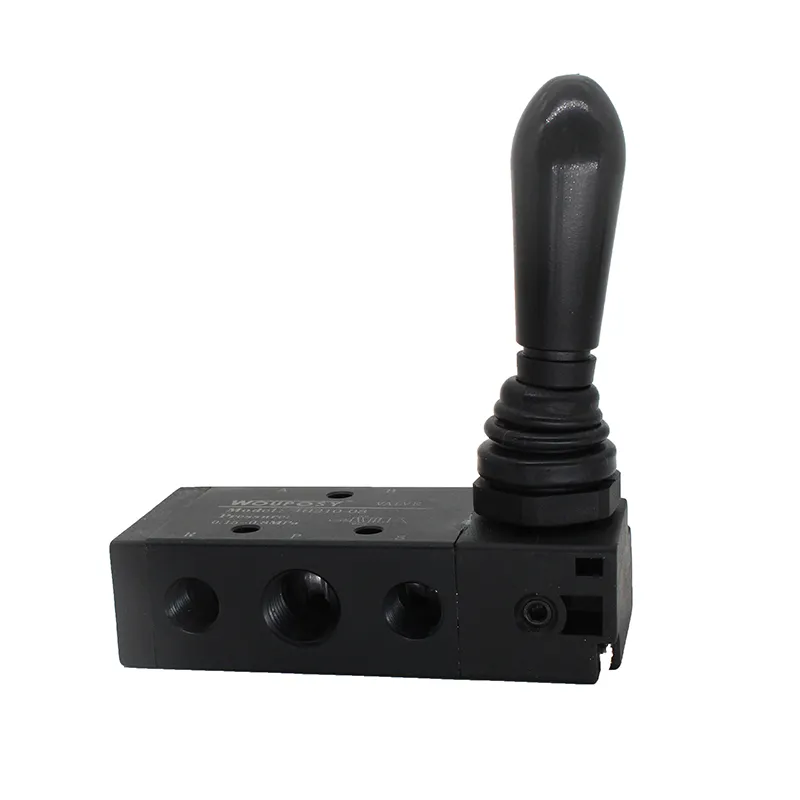

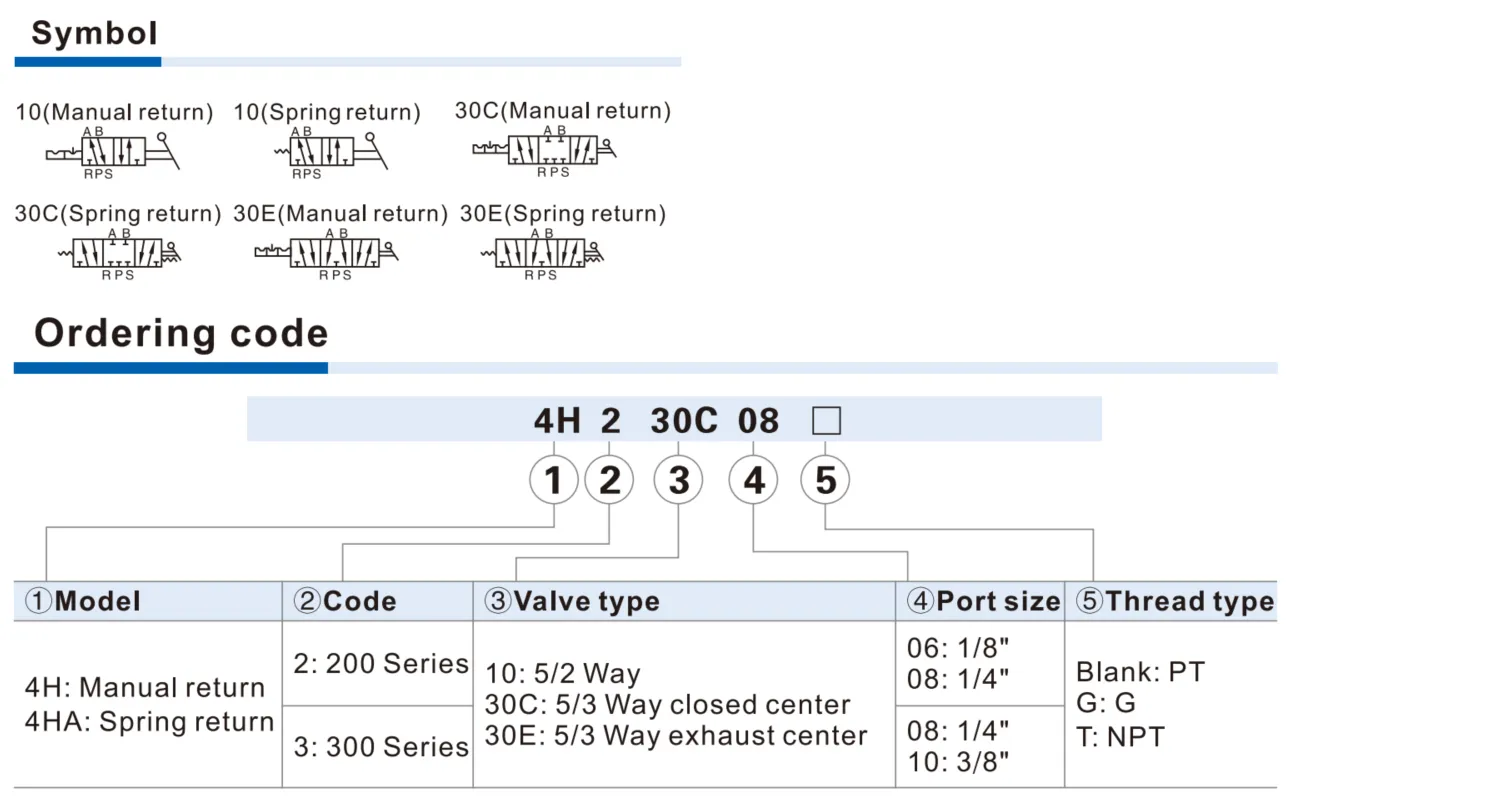

| Modal | 210-06 | 230-06 | 210-08 | 230-08 | 310-08 | 330-08 | 310-10 | 330-10 |
| Fluid | Air (to be filtered by 40 u m filter element) | |||||||
| Operating | Manual control direct acting type) | |||||||
| Port size | 1/8″ | In=Out=1/4″ Exhaust=1/8″ | 1/4″ | In=Out=3/8″ Exhaust=1/4″ | ||||
| Orifice size(Cv) | 4H210-08:17.0 mm²(Cv=1.0) 4H230C-08:13.6 mm²(Cv=0.8) | 4H310-10:28.0 mm²(Cv=1.65) 4H330C-10:21.3 mm²(Cv=1.25) | ||||||
| Valve type | 5/2 way | 5/3 way | 5/2 way | 5/3 way | 5/2 way | 5/3 way | 5/2 way | 5/3 way |
| Lubrication | Not required | |||||||
| Pressure Range | 0~1.0MPa(0~145psi) | |||||||
| Proof pressure | 1.5MPa(215psi) | |||||||
| Temperature | -5~70℃ | |||||||
| Material body | Aluminum alloy | |||||||

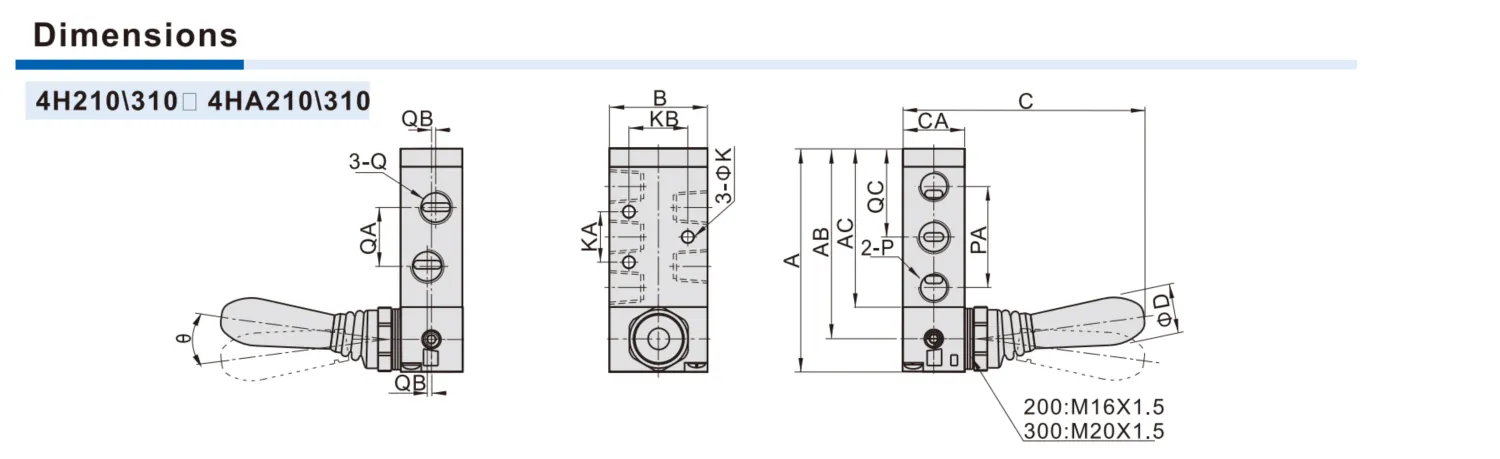

| Modal\Item | A | AB | AC | B | C | CA | D | K | KA | KB | P | PA | Q | QA | QB | QC | Θ |
| 4H210-06 4HA210-06 | 81.5 | 69.5 | 57.5 | 35 | 90 | 22 | 18 | 4.3 | 20 | 23.5 | 1/8″ | 36 | 1/8″ | 18 | – | 32.5 | 15 |
| 4H210-08 4HA210-08 | 81.5 | 69.5 | 57.5 | 35 | 90 | 22 | 18 | 4.3 | 20 | 23.5 | 1/8″ | 36 | 1/8″ | 21 | 1.5 | 32.5 | 15 |
| 4H310-08 4HA310-08 | 101 | 87 | 73 | 40 | 93.5 | 27 | 18 | 4.3 | 24 | 27.5 | 1/4″ | 45 | 1/4″ | 22 | – | 40.5 | 18 |
| 4H310-10 4H310-10 | 101 | 87 | 73 | 40 | 93.5 | 27 | 18 | 4.3 | 24 | 27.5 | 1/4″ | 45 | 1/4″ | 24 | 2 | 40.5 | 18 |

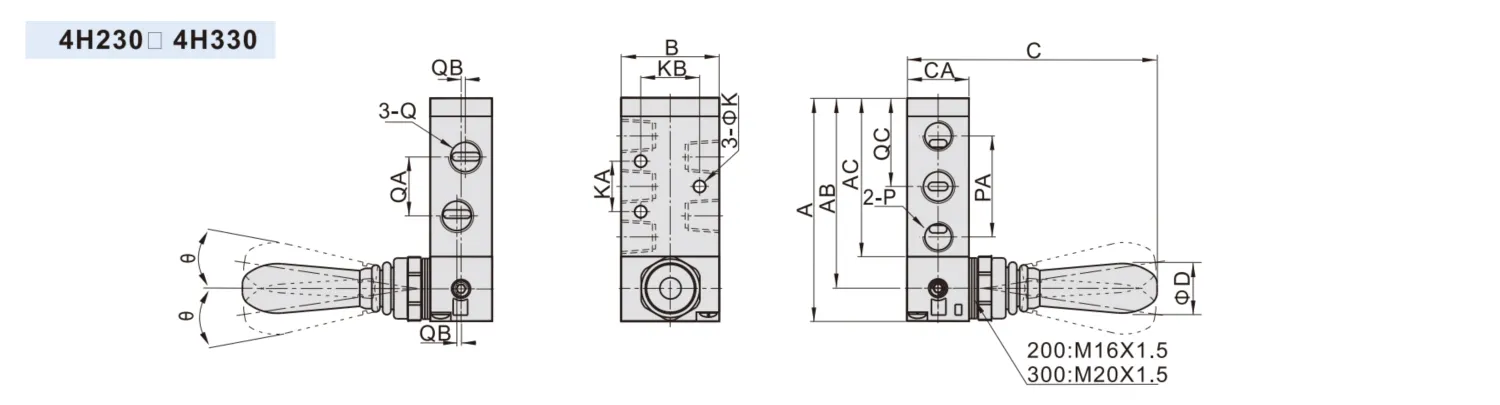

| Modal\Item | A | AB | AC | B | C | CA | D | K | KA | KB | P | PA | Q | QA | QB | QC | Θ |
| 4H230C-06 4H230E-06 | 81.5 | 69.5 | 57.5 | 35 | 90.5 | 22 | 18 | 4.3 | 20 | 23.5 | 1/8″ | 36 | 1/8″ | 18 | – | 32.5 | 8.5 |
| 4H230C-08 4H230E-08 | 81.5 | 69.5 | 57.5 | 35 | 90.5 | 22 | 18 | 4.3 | 20 | 23.5 | 1/8″ | 36 | 1/8″ | 21 | 1.5 | 32.5 | 8.5 |
| 4H330C-08 4H330E-08 | 101 | 87 | 73 | 40 | 94 | 27 | 18 | 4.3 | 24 | 27.5 | 1/4″ | 45 | 1/4″ | 22 | – | 40.5 | 10 |
| 4H330C-10 4H330E-10 | 101 | 87 | 73 | 40 | 94 | 27 | 18 | 4.3 | 24 | 27.5 | 1/4″ | 45 | 1/4″ | 24 | 2 | 40.5 | 10 |

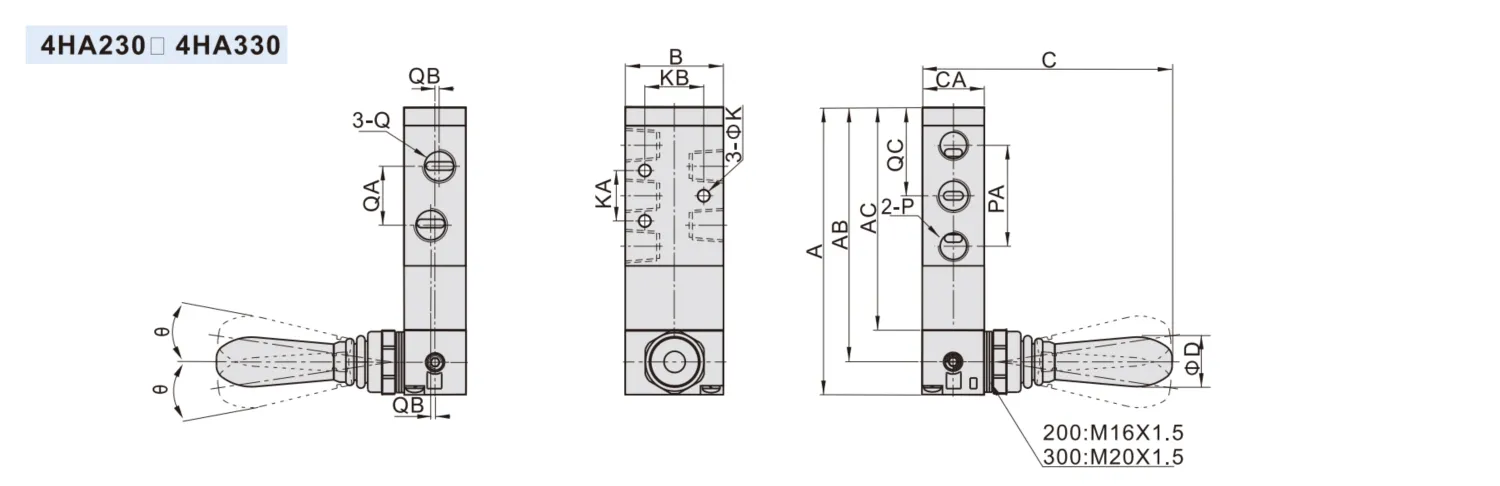

| Modal\Item | A | AB | AC | B | C | CA | D | K | KA | KB | P | PA | Q | QA | QB | QC | Θ |
| 4HA230C-06 4HA230E-06 | 100.5 | 88.5 | 76.5 | 35 | 90.5 | 22 | 18 | 4.3 | 20 | 23.5 | 1/8″ | 36 | 1/8″ | 18 | – | 32.5 | 8.5 |
| 4HA230C-08 4HA230E-08 | 100.5 | 88.5 | 76.5 | 35 | 90.5 | 22 | 18 | 4.3 | 20 | 23.5 | 1/8″ | 36 | 1/4″ | 21 | 1.5 | 32.5 | 8.5 |
| 4HA330C-08 4HA330E-08 | 120 | 106 | 92 | 40 | 94 | 27 | 18 | 4.3 | 24 | 27.5 | 1/4″ | 45 | 1/4″ | 22 | – | 40.5 | 10 |
| 4HA330C-10 4HA330E-10 | 120 | 106 | 92 | 40 | 94 | 27 | 18 | 4.3 | 24 | 27.5 | 1/4″ | 45 | 3/8″ | 24 | 2 | 40.5 | 10 |
