1.2S series solenoid valve has a reasonable structure and excellent performance. Sealed well and responsive quickly.
2. The design is simple and easy to clean and inspect, which helps to maintain good working condition and low maintenance costs.
3. Plastic sealed coils can be used: Plastic sealed coils enhance safety performance, provide good insulation protection, and are suitable for harsh environments such as humidity and dust.
| 名称：2S series copper water valve |
| 材质：304 stainless steel |
| 工作压力：0~1.0Mpa |
| 工作温度：-5~80℃（Compatible with 150 ℃ accessories） |
| 流通介质：inert fluid |
| 使用流体粘度：低于20CST |

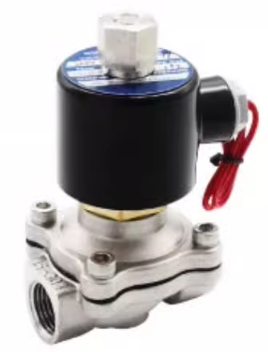

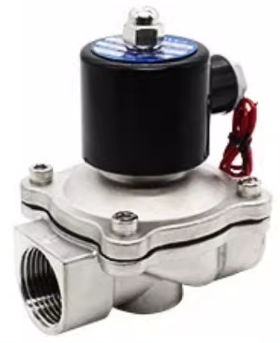

| Standard type | |||||
| Product photo | Valve type | Voltage | Product parameters | Screw thread | Model |
| Normally closed | DC12V DC24V AC220V AC380V | Medium temperature: -5~80 ℃ Maximum working pressure: 0-10 Bar（Optional maximum medium temperature of 150 ℃） | 1/8 | / |
| 1/4 | 2S025-08 | ||||
| 3/8 | 2S040-10 | ||||
| 1/2 | 2S160-15 | ||||
| 3/4 | 2S200-20 | ||||
| 1″ | 2S250-25 | ||||
| 1-1/4 | 2S320-35 | ||||
| 1-1/2 | 2S400-40 | ||||
| 2″ | 2S500-50 | ||||
 | Normally open | 1/8 | 2S025-06K | ||
| 1/4 | 2S025-08K | ||||
| 3/8 | 2S040-10K | ||||
| 1/2 | 2S160-15K | ||||
| 3/4 | 2S200-20K | ||||
| 1″ | 2S250-25K | ||||
| 1-1/4 | 2S320-35K | ||||
| 1-1/2 | 2S400-40K | ||||
| 2″ | 2S500-50K | ||||

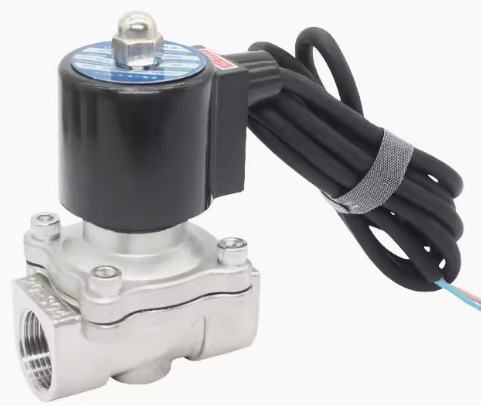

| Waterproof type | |||||
| Product photo | Valve type | Voltage | Product parameters | Screw thread | Model |
| Normally closed | DC12V DC24V AC220V | Waterproof grade: IP66 Medium temperature: -5~80 ℃ Maximum working pressure: 0-10 Bar（Optional maximum medium temperature of 150 ℃） | 1/8 | / |
| 1/4 | 2S025-08FS | ||||
| 3/8 | 2S040-10FS | ||||
| 1/2 | 2S160-15FS | ||||
| 3/4 | 2S200-20FS | ||||
| 1″ | 2S250-25FS | ||||
| 1-1/4 | 2S320-35FS | ||||
| 1-1/2 | 2S400-40FS | ||||
| 2″ | 2S500-50FS | ||||
| Normally open | 1/8 | 2S025-06FSK | |||
| 1/4 | 2S025-08FSK | ||||
| 3/8 | 2S040-10FSK | ||||
| 1/2 | 2S160-15FSK | ||||
| 3/4 | 2S200-20FSK | ||||
| 1″ | 2S250-25FSK | ||||
| 1-1/4 | 2S320-35FSK | ||||
| 1-1/2 | 2S400-40FSK | ||||
| 2″ | 2S500-50FSK | ||||

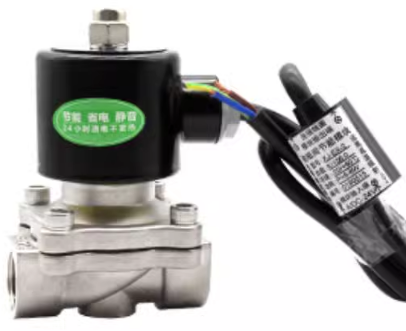

| Energy saving type Energy saving type: supports a maximum power on time of 24 hours | |||||
| Product photo | Valve type | Voltage | Product parameters | Screw thread | Model |
| Normally closed | DC12V DC24V AC220V | Medium temperature: -5~80 ℃ Maximum working pressure: 0-10 Bar（Optional maximum medium temperature of 150 ℃） | 1/8 | / |
| 1/4 | 2S025-08J | ||||
| 3/8 | 2S040-10J | ||||
| 1/2 | 2S160-15J | ||||
| 3/4 | 2S200-20J | ||||
| 1″ | 2S250-25J | ||||
| 1-1/4 | 2S320-35J | ||||
| 1-1/2 | 2S400-40J | ||||
| 2″ | 2S500-50J | ||||
| Normally open | 1/8 | 2S025-06JK | |||
| 1/4 | 2S025-08JK | ||||
| 3/8 | 2S040-10JK | ||||
| 1/2 | 2S160-15JK | ||||
| 3/4 | 2S200-20JK | ||||
| 1″ | 2S250-25JK | ||||
| 1-1/4 | 2S320-35JK | ||||
| 1-1/2 | 2S400-40JK | ||||
| 2″ | 2S500-50JK | ||||
