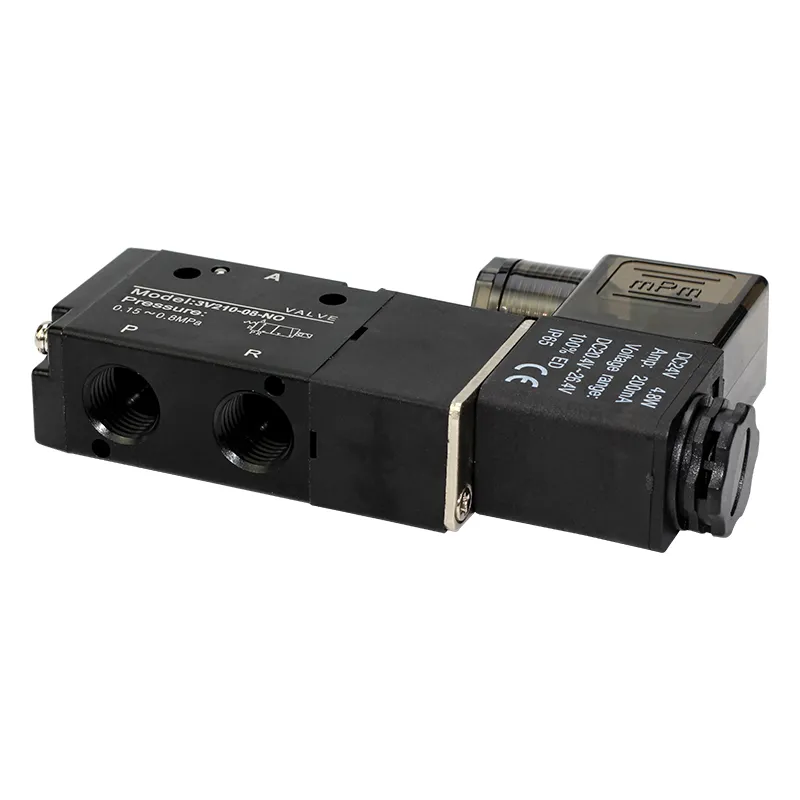

3V series 3/2 Solenoid valve 300

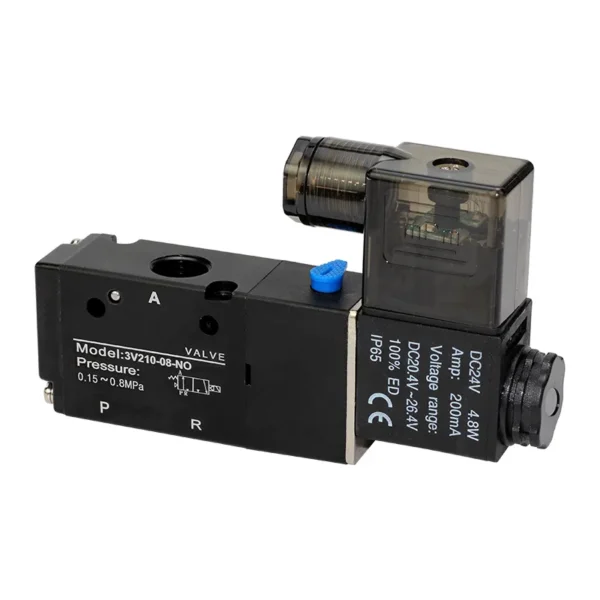

3V series 3/2 Solenoid valve 300 - Image 2

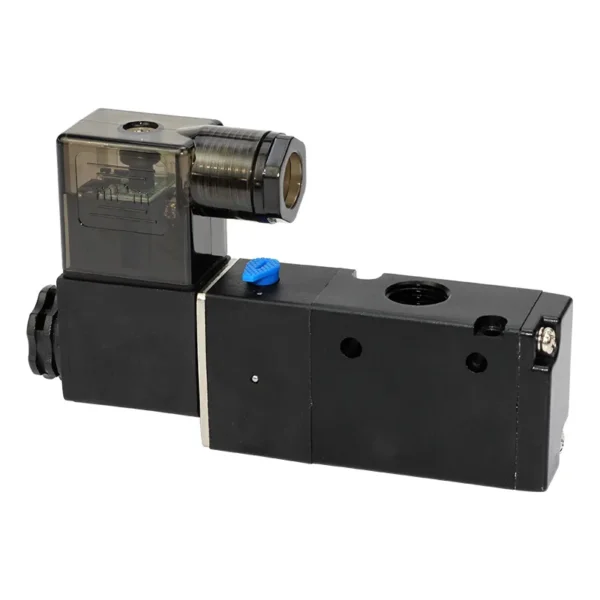

3V series 3/2 Solenoid valve 300 - Image 3

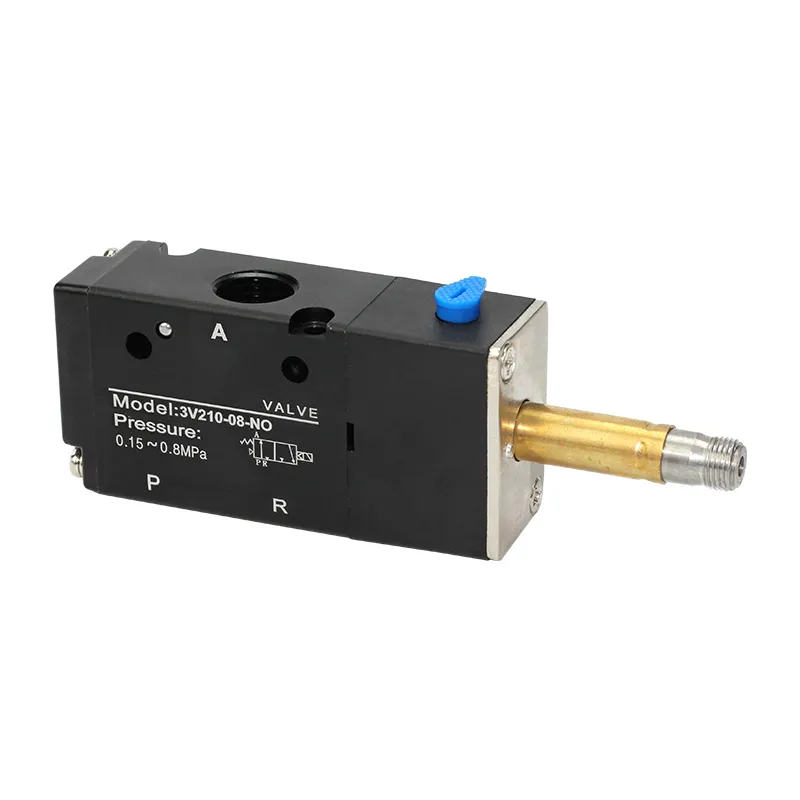

3V series 3/2 Solenoid valve 300 - Image 4

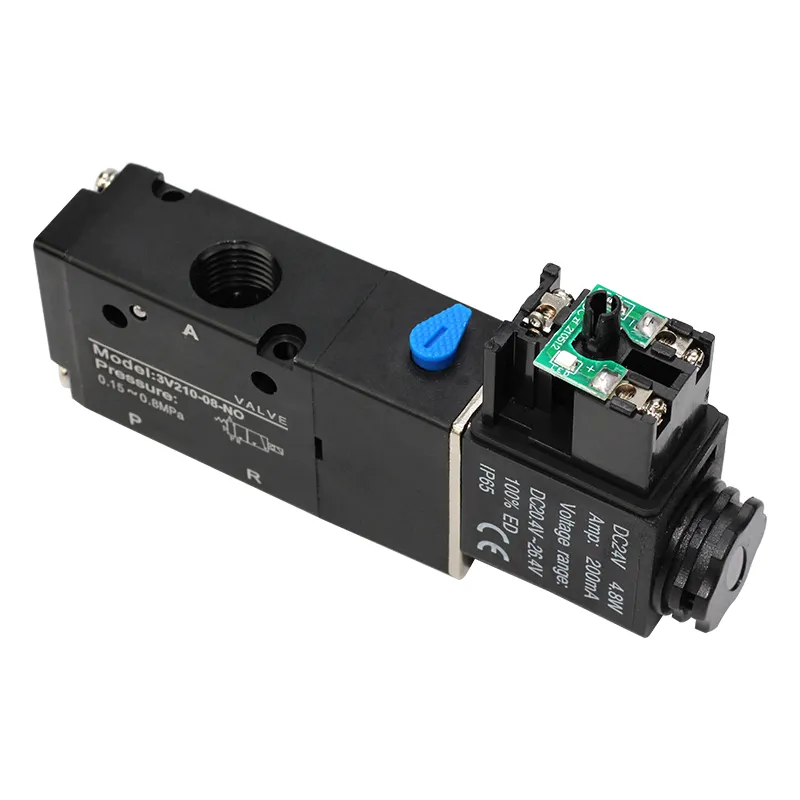

3V series 3/2 Solenoid valve 300 - Image 5
3V series 3/2 Solenoid valve 300 - Image 6
3V series 3/2 Solenoid valve 300
  1. Pilot-oriented mode:Internal pilot or external pilot.
  2. Structure in sliding column mode: good tightness andsensitive reaction.
  3. Double control solenoid valves have memory function.
  4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
  5. Affiliated manual devices are equipped to facilitate installation and debugging.
  6. Several standard voltage grades are optional.
  7. Integrate with the manifold to save installation space.
Request Quote

Product Details

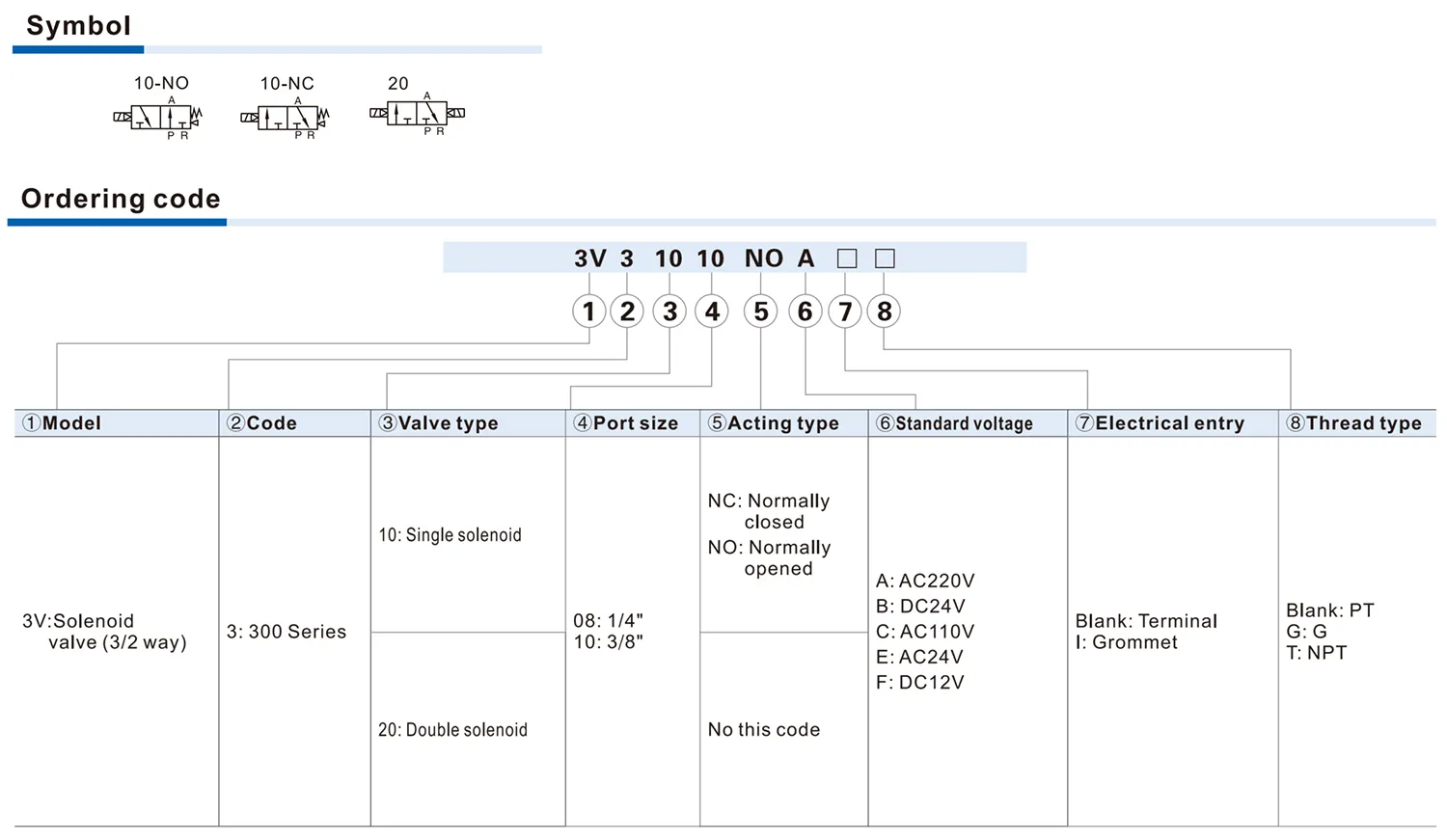

Modal3V310-083V320-083V310-103V320-10
FluidAir (to be filtered by 40 u m filter element)
ActingInternal pilot or external pilot
Port size [Note1]In=Out=1/4″In=Out=3/8″
Orifice size(Cv)[Note3]3V310-10,3V320-10:28.0mm²(Cv=1.65)
Valve type3 port 2 position
Lubrication  [Note2]Not required
Operating pressure0.15~0.8MPa(21~114psi)
Proof pressure1.2MPa(175psi)
Temperature 0~70℃
Material of bodyAluminum alloy
