Description
| Modal | 4V310-08 4V320-08 | 4V330C-08 4V330E-08 4V330P-08 | 4V310-10 4V320-10 | 4V330C-10 4V330E-10 4V330P-10 |
| Fluid | Air (to be filtered by 40 u m filter element) | |||
| Acting | Internal pilot or external pilot | |||

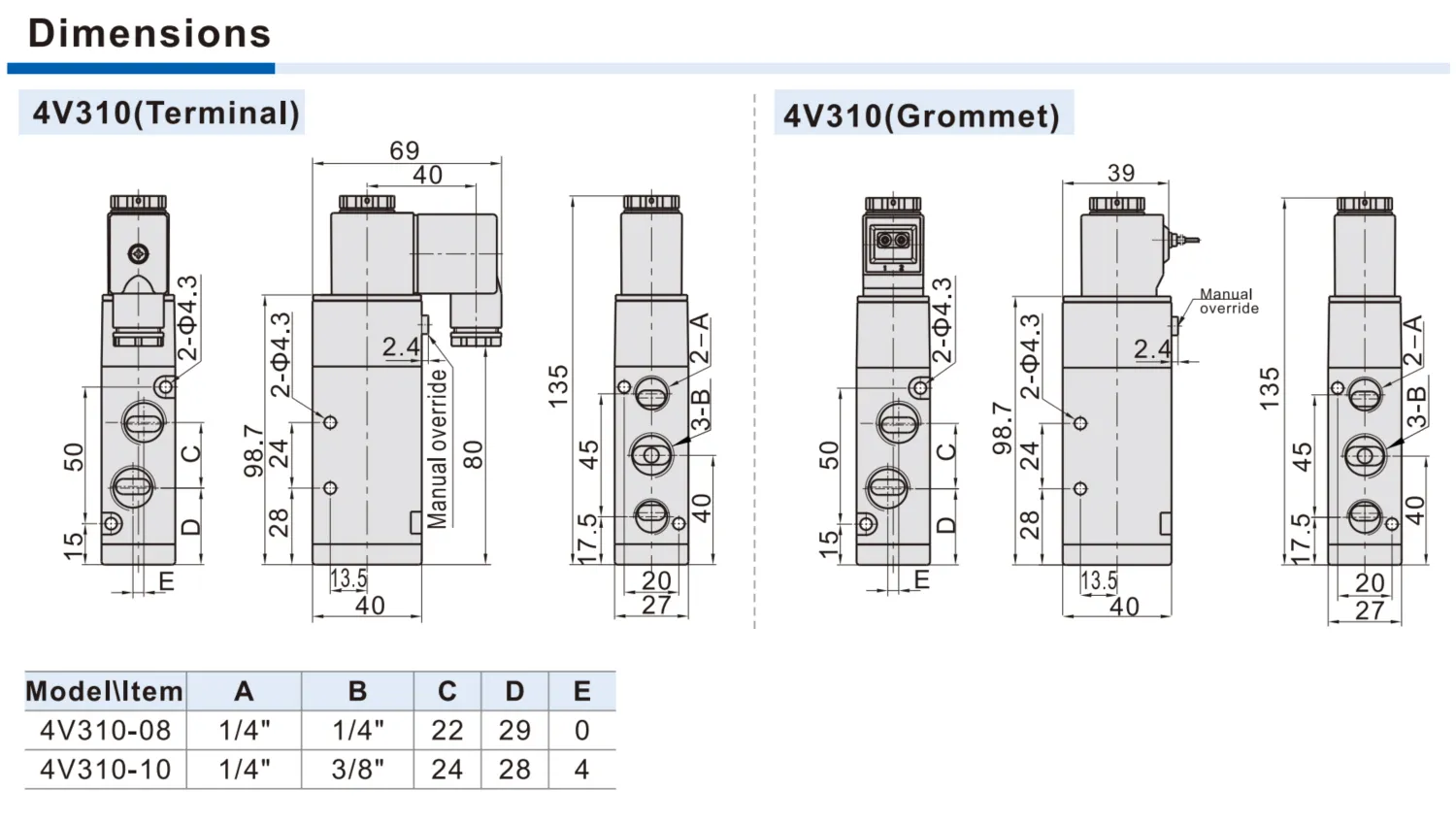

| Port size | In=Out=Exhaust=1/4″ | In=Out=3/8″ Exhaust=1/4″ | ||
| Orifice size(Cv) | 4V310-10,4V320-10:28.0mm²(Cv-1.65) 4V330C-10:21.3mm²(Cv=1.25) | |||

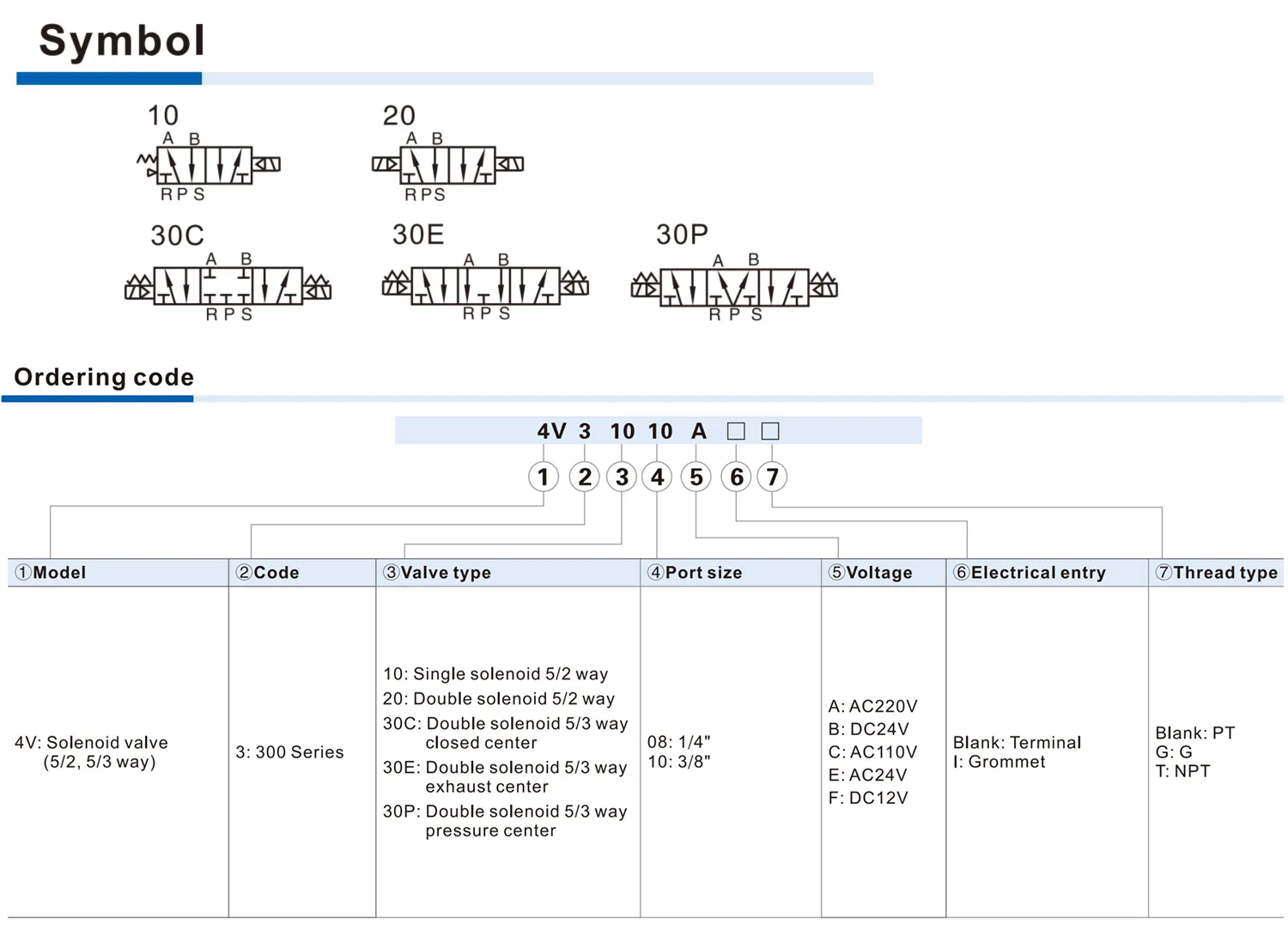

| Valve type | 5 port 2 position | 5 port 3 position | 5 port 2 position | 5 port 3 position |
| Operating pressure | 0.15~0.8MPa(21~114psi) | |||
| Proof pressure | 1.2MPa(175psi) | |||
| Temperature | -20~70℃ | |||
| Material of body | Aluminum alloy | |||
| Lubrication | Not required | |||
| Max.frequency | 4 cycle/sec | 3 cycle/sec | 4 cycle/sec | 3 cycle/sec |
