Description
| Modal | 4v410-15 | 4v420-15 | 4v430C-15 | 4V430E-15 | 4V430P-15 |
| Fluid | Air (to be filtered by 40 u m filter element) | ||||
| Acting | Internal pilot or external pilot | ||||
| Port size | 1/2″ | ||||
| Orifice size(Cv) | 4V410-15,4V420-15:48.0mm²(Cv-2.82) 4V430C-15:40.0mm²(Cv=2.35) | ||||

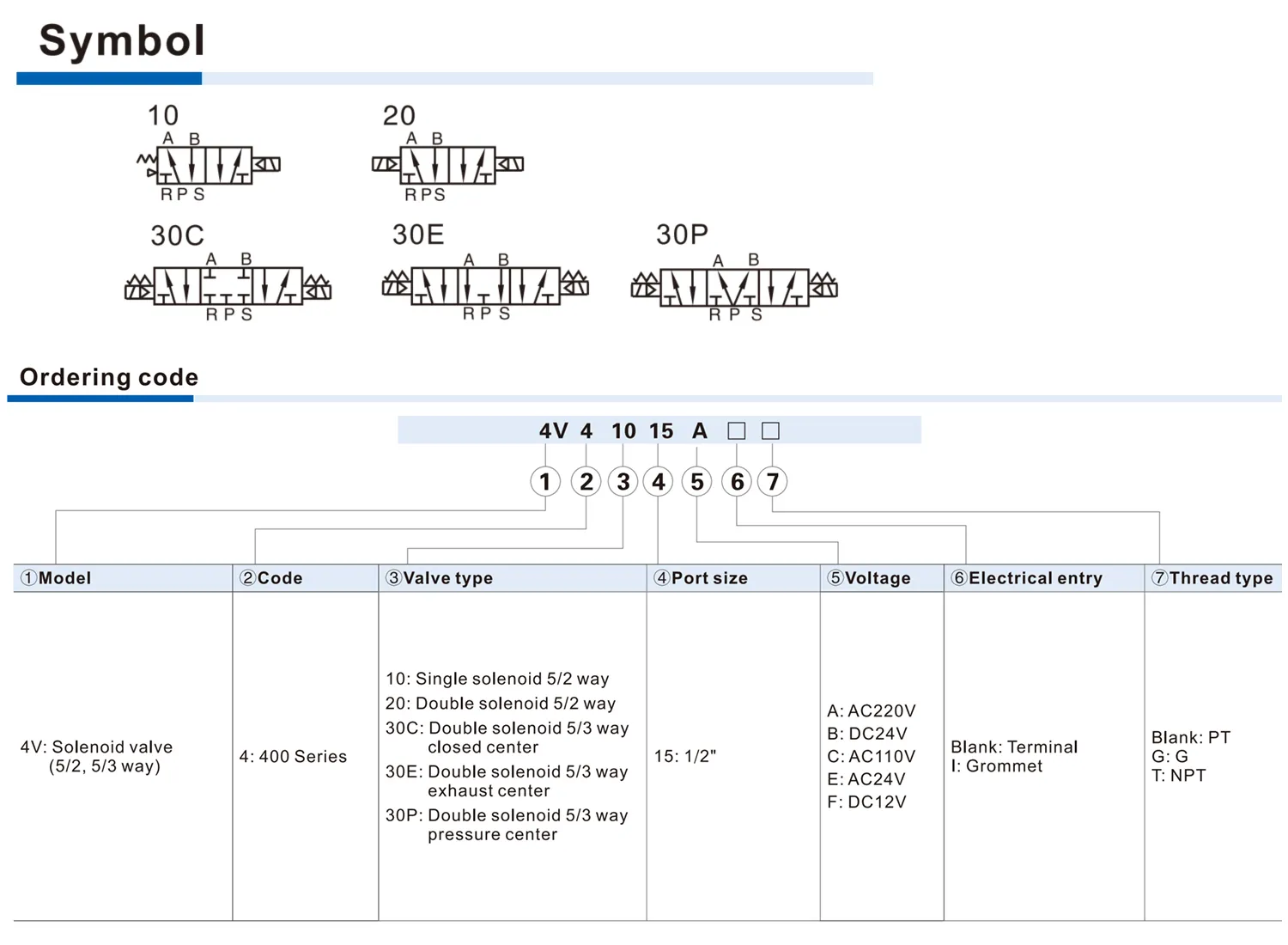

| Valve type | 5 port 2 position | 5 port 3 position | |||
| Operating pressure | 0.15~0.8MPa(21~114psi) | ||||
| Proof pressure | 1.2MPa(175psi) | ||||
| Temperature | -20~70℃ | ||||
| Material of body | Aluminum alloy | ||||
| Lubrication | Not required | ||||
| Max.frequency | 3 cycle/sec | ||||
