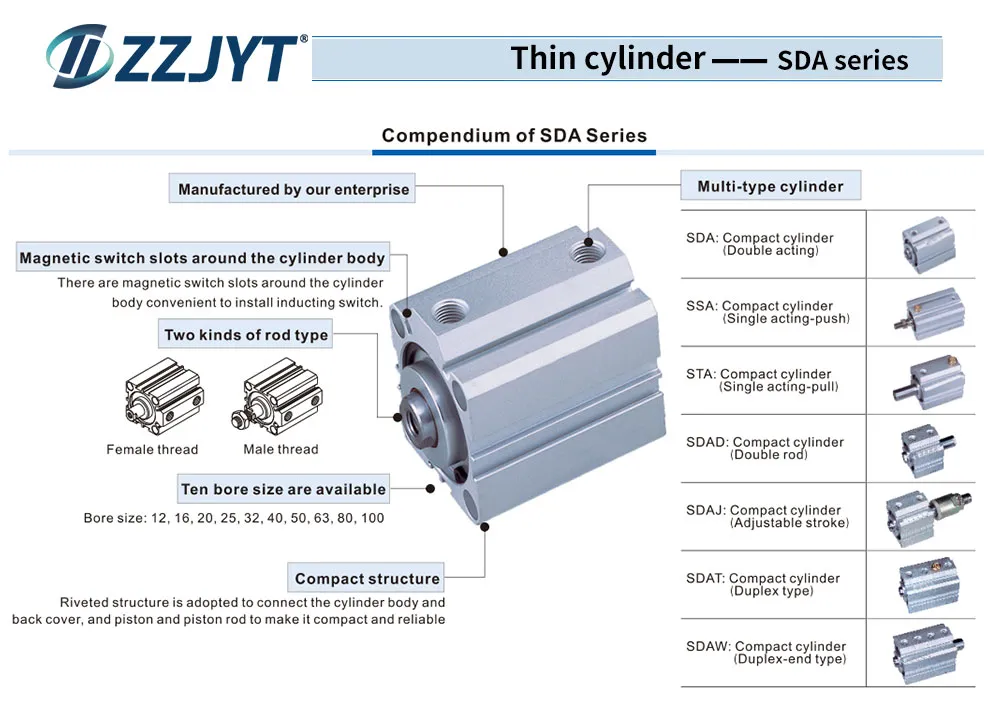

| Bore size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting type | Double acting | ||||||||||
| Single acting_Push type、Single acting_Pull type | – | ||||||||||
| Fluid | Air (to be filtered by 40 u m filter element) | ||||||||||
| Operating pressure | Double acting | 0.15-1.0MPa(22-145psi)(1.5-10.0bar) | |||||||||
| Single acting | 0.2-1.0MPa(28-145psi)(2.0-10.0bar) | ||||||||||
| Proof pressure | 1.5MPa(215psil)(15bar) | ||||||||||
| Temperature℃ | 0-70℃ | ||||||||||
| Speed range mm/s | Double acting: 30~500 Single acting: 50~500 | ||||||||||
| Stroke tolerance | Stroke≤100⁺₀¹·⁰ Stroke＞100⁺₀¹·⁵ | ||||||||||
| Cushion type | Bumper | ||||||||||
| Port size | M5*0,8 | 1/8″ | 1/4″ | 3/8″ | |||||||

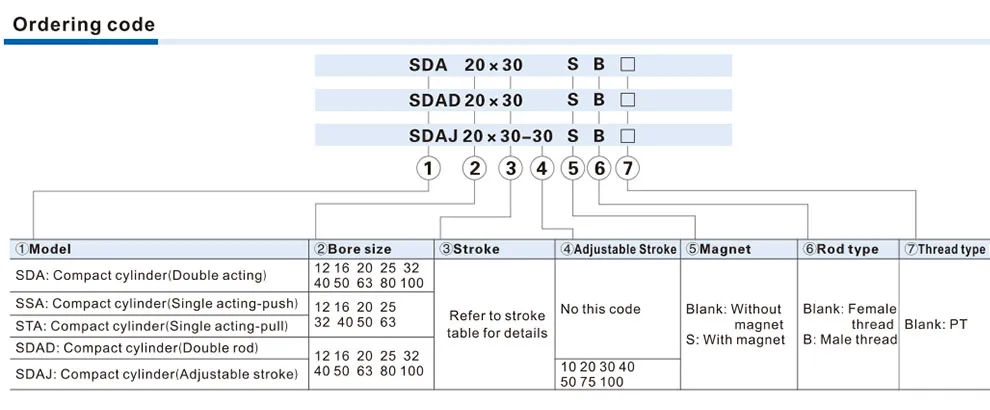

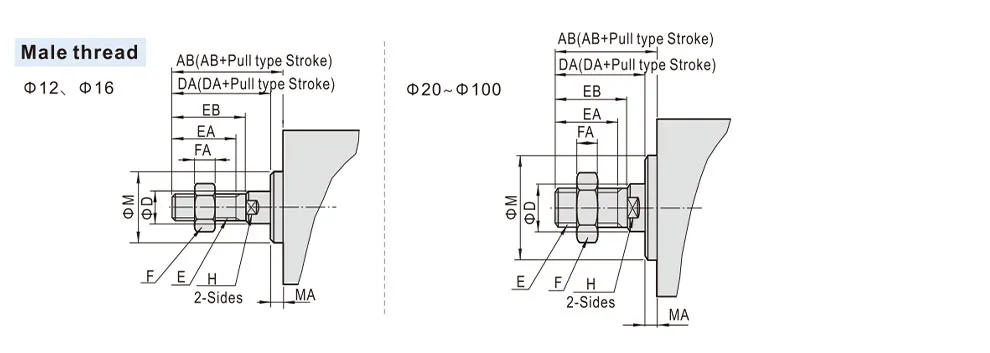

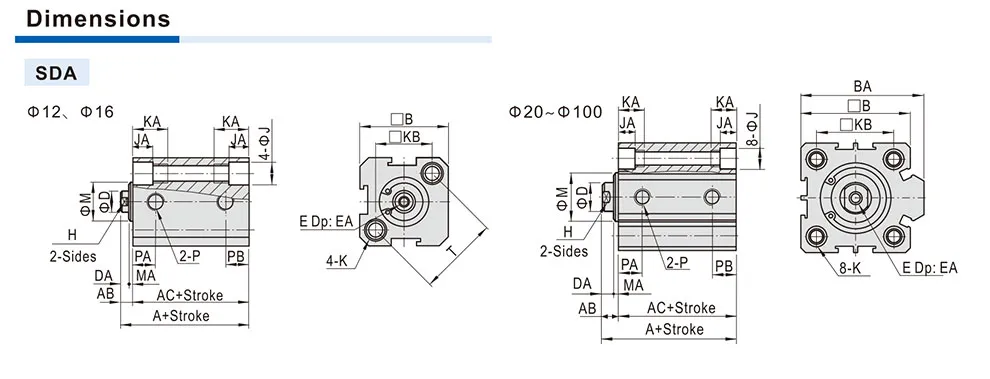

| Item Bore size | A | AC | A | AC | AB | B | BA | D | DA | E | EA | H | J | JA | K | KA | KB | M | MA | P | PA | PB | T | ||
| Without magnet | With magnet | St=5 | St＞5 | St=5 | St＞5 | ||||||||||||||||||||
| 12 | 22 | 17 | 32 | 27 | 5 | 25 | – | 6 | 4 | M3*0.5 | 6 | 5 | 6.5 | 4.5 | M5*0.8Thru.hole:4.2 | 12 | 16.3 | 10.2 | 1 | M5*0.8 | 7.5 | 7.5 | 5 | 5 | 23 |
| 16 | 24 | 18.5 | 34 | 28.5 | 5.5 | 29 | – | 6 | 4 | M3*0.5 | 6 | 5 | 6.5 | 4.5 | M5*0.8Thru.hole:4.2 | 12 | 19.8 | 11 | 1.5 | M5*0.8 | 8 | 8 | 5 | 5.5 | 28 |
| 20 | 25 | 19.5 | 35 | 29.5 | 5.5 | 34 | 36 | 8 | 4 | M4*0.7 | 8 | 6 | 6.5 | 4.5 | M5*0.8Thru.hole:4.2 | 14 | 24 | 13 | 1.5 | M5*0.8 | 8 | 9 | 5 | 5.5 | – |
| 25 | 27 | 21 | 37 | 31 | 6 | 40 | 42 | 10 | 4 | M5*0.8 | 10 | 8 | 8.2 | 5.5 | M6*1.0Thru.hole:5.2 | 15 | 28 | 17 | 2 | M5*0.8 | 9 | 9 | 5.5 | 5.5 | – |
| 32 | 31.5 | 24.5 | 41.5 | 34.5 | 7 | 44 | 50 | 12 | 4.5 | M6*1.0 | 12 | 10 | 8.2 | 5.5 | M6*1.0Thru.hole:5.2 | 16 | 34 | 22 | 2.5 | 1/8″ | 9 | 9 | 6.5 | 9 | – |
| 40 | 33 | 26 | 43 | 36 | 7 | 52 | 58.8 | 16 | 4 | M8*1.25 | 12 | 14 | 10.5 | 6.5 | M8*1.25Thru.hole:6.7 | 20 | 40 | 28 | 3 | 1/8″ | 9.5 | 9.5 | 7.5 | 7.5 | – |
| 50 | 37 | 28 | 47 | 38 | 9 | 62 | 71.5 | 20 | 5 | M10*1.5 | 15 | 17 | 10.5 | 6.5 | M8*1.25Thru.hole:6.7 | 25 | 48 | 38 | 4 | 1/4″ | 8 | 10.5 | 8 | 10.5 | – |
| 63 | 41 | 32 | 51 | 42 | 9 | 75 | 84.5 | 20 | 5 | M10*1.5 | 15 | 17 | 10.5 | 6.5 | M8*1.25Thru.hole:6.7 | 25 | 60 | 40 | 4 | 1/4″ | 9.5 | 12 | 9.5 | 11 | – |
| 80 | 52 | 41 | 62 | 51 | 11 | 94 | 104 | 25 | 6 | M14*1.5 | 20 | 22 | 17 | 11 | M12*1.75Thru.hole:10.4 | 25 | 74 | 45 | 5 | 3/8″ | 11.5 | 14.5 | 11.5 | 14.5 | – |
| 100 | 63 | 51 | 73 | 61 | 12 | 114 | 124 | 32 | 7 | M18*1.5 | 20 | 27 | 19 | 13 | M14*2.0Thru.hole:12.4 | 30 | 90 | 55 | 5 | 3/8″ | 16 | 20.5 | 16 | 20.5 | – |
