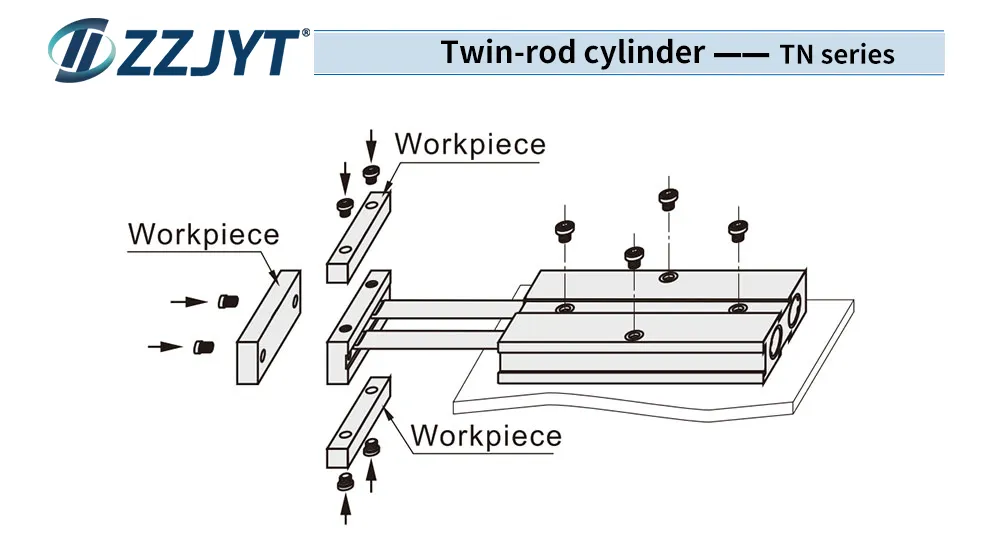

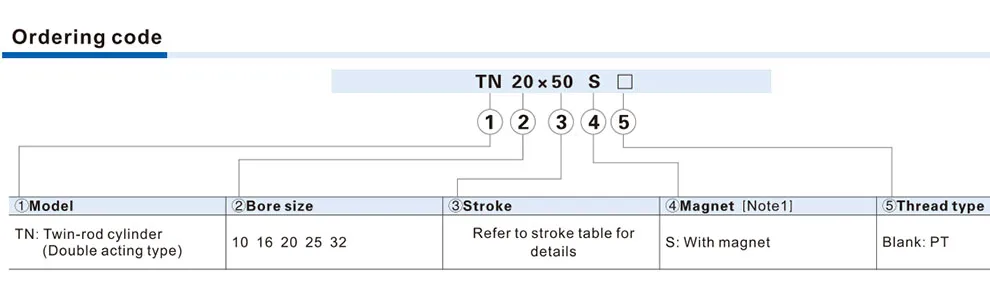

Description
| Bore size(mm) | 10 | 16 | 20 | 25 | 32 |
| Acting type | Double acting | ||||
| Fluid | Air(to be filtered by 40 μ m fiter element) | ||||
| Operating pressure | 0.15~1.0MPa(22~145psi) | ||||
| Proof pressure | 1.5MPa(215psi) | ||||
| Temperature℃ | -20~70 | ||||
| Speed range mm/s | 30~500 | ||||
| Adjustable stroke mm | -10~0 | ||||
| Stroke tolerance | ≤100⁺ₒ¹·⁰ >100⁺₀¹·⁵ | ||||
| Cushion type | Bumper | ||||
| Non-rotating tolerance | ±0.4° | ±0.3° | |||
| Port size | M5*0.8 | 1/8″ | |||

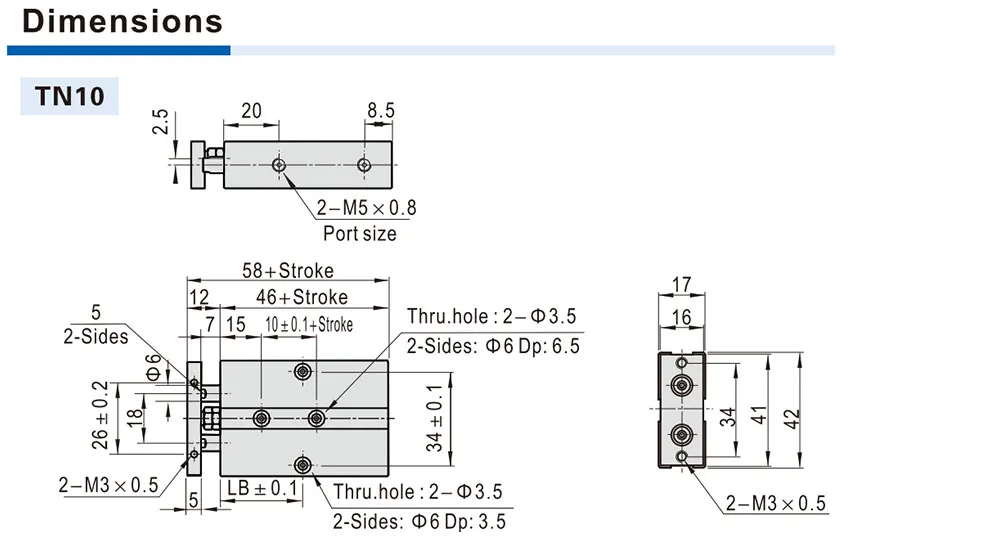

| ItemStroke(TN10) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| LB | 30 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 |

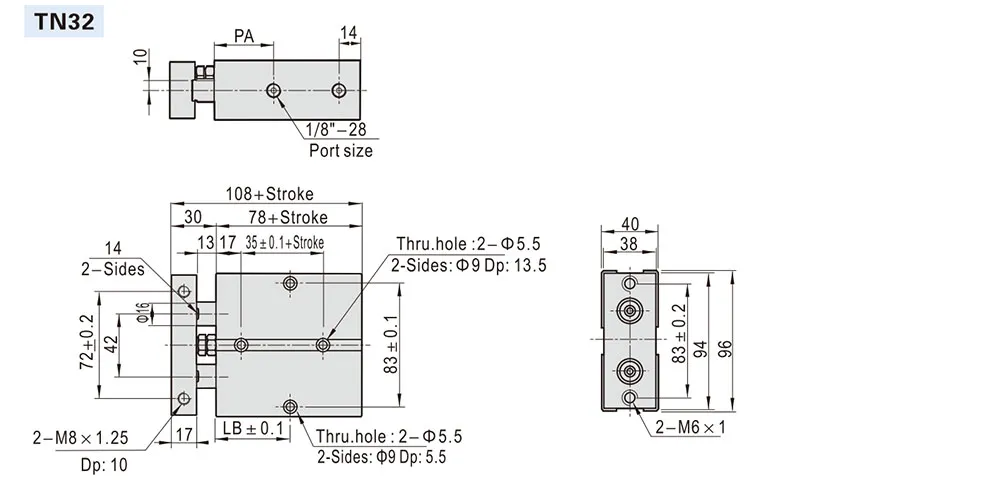

| ItemStroke(TN32) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | 175 | 200 |
| LB | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 102.5 | 115 | 127.5 | 140 |
| PA | 35 | 40 | ||||||||||||

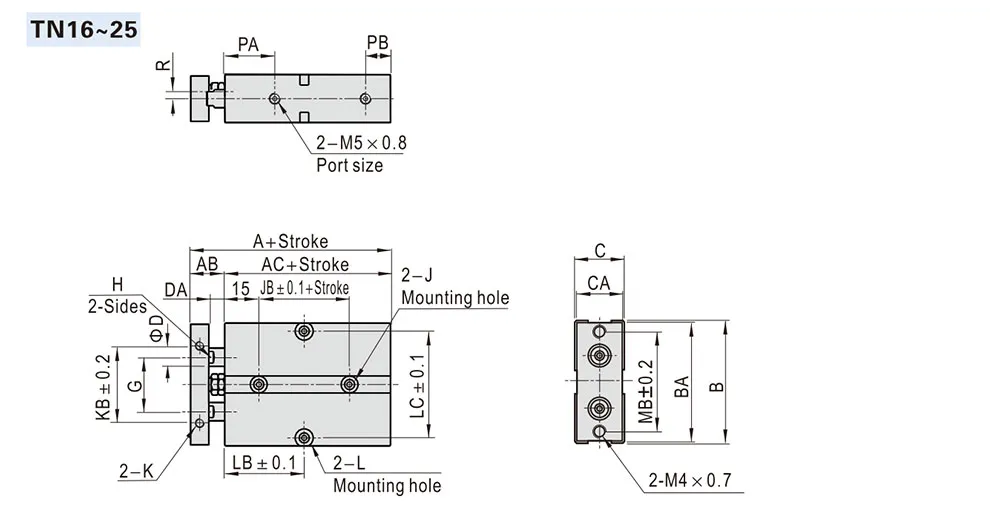

| Bore sizeItem(TN16~25) | A | AB | AC | B | BA | C | CA | D | DA | G | H |
| 16 | 68 | 15 | 53 | 54 | 53 | 21 | 20 | 8 | 7 | 24 | 6 |
| 20 | 78 | 20 | 58 | 62 | 61 | 25 | 24 | 10 | 10 | 28 | 8 |
| 25 | 81 | 19 | 62 | 73 | 72 | 30 | 29 | 12 | 9 | 34 | 10 |
| Bore sizeItem(TN16~25) | JB | K | KB | PA | PB |
| 16 | 20 | M4*0.7Dp:5 | 34 | 22 | 11 |
| 20 | 20 | M4*0.7Dp:5 | 44 | 25 | 12 |
| 25 | 30 | M4*0.7Dp:6 | 56 | 27 | 12 |
| Bore sizeItem(TN16~25) | LB | |||||||||||||
| Stroke≤ | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | 175 | 200 |
| 16 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 87.5 | 100 | 112.5 | 125 |
| 20 | 35 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 87.5 | 100 | 112.5 | 125 |
| 25 | 40 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 92.5 | 105 | 117.5 | 130 |
