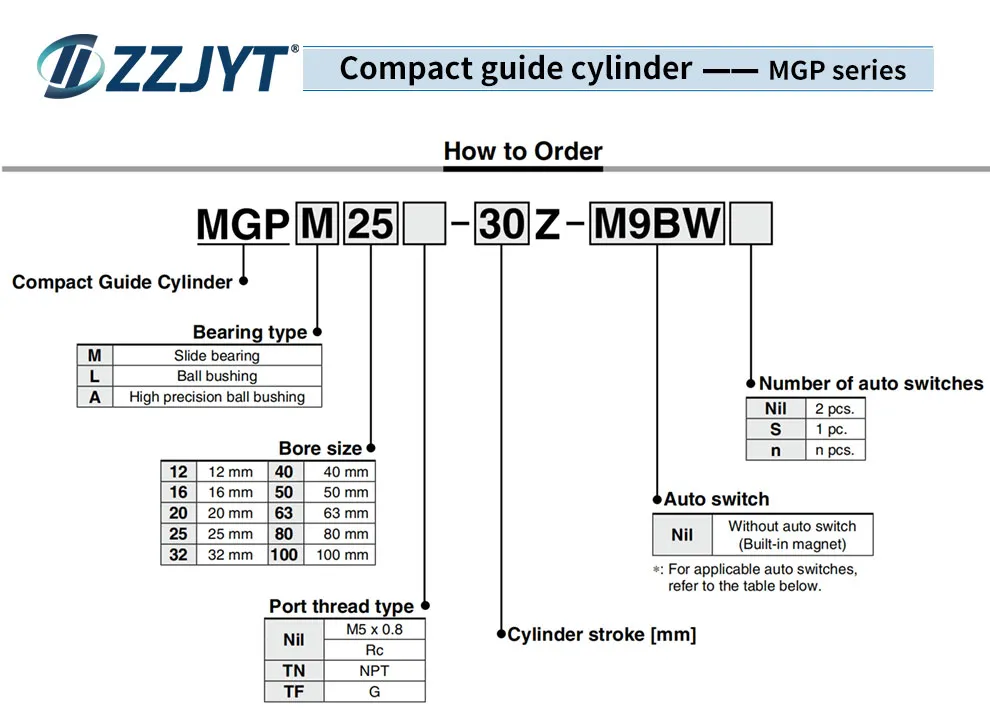

Product Details

Bore size [mm]	12	16	20	25	32	40	50	63	80	100
Action	Double acting
Fluid	Air
Proof pressure	1.5 Mpa
Maximum operating pressure	1.0 Mpa
Minimum operating pressure	0.12 Mpa		0.1 Mpa
Ambient and fluid temperature	-10 to 60°C (No freezing)
Piston speed	50 to 500 mm/s								50 to 400 mm/s
Cushion	Rubber bumper on both ends
Lubrication	Not required (Non-lube)

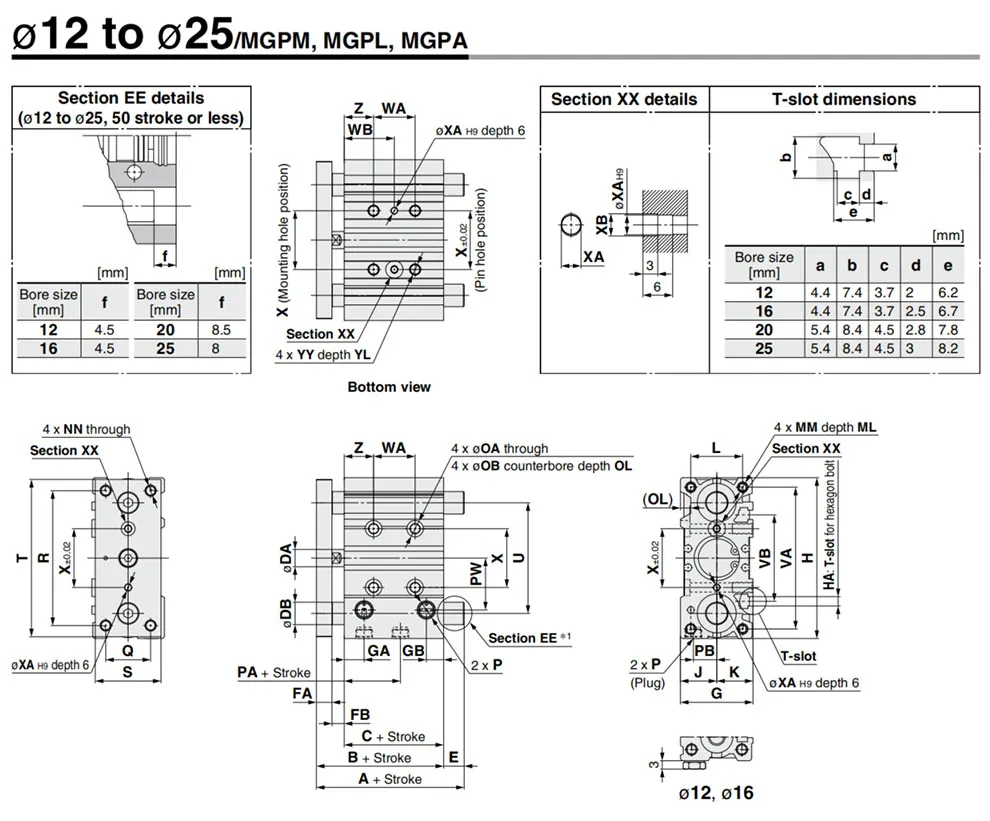

MGPM,MGPL,MGPA Common Dimensions
Bore size[mm]	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	P
Bore size[mm]	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	Nil	TN	TF
12	42	29	6	7	6	26	10	7	58	M4	13	13	18	M4X0.7	10	M4X0.7	4.3	8	4.5	M5X0.8	/	/
16	46	33	8	7	6	30	10.5	7.5	64	M4	15	15	22	M5X0.8	12	M5X0.8	4.3	8	4.5	M5X0.8	/	/
20	53	37	10	8	8	36	11.5	9	83	M5	18	18	24	M5X0.8	13	M5X0.8	5.4	9.5	5.5	Rc1/8	NPT1/8	G1/8
25	53.5	37.5	10	9	7	42	11.5	10	93	M5	21	21	30	M6X1.0	15	M6X1.0	5.4	9.5	5.5	Rc1/8	NPT1/8	G1/8

Bore size[mm]	PA	PB	PW	Q	R	S	T	U	VA	VB	WA					WB					X	XA	XB	YY			YL	Z
Bore size[mm]	PA	PB	PW	Q	R	S	T	U	VA	VB	30st or less	Over 30st 100st or less	Over 100st 200st or less	Over 200st 300st or less	Over 300st	30st or less	Over 30st 100st or less	Over 100st 200st or less	Over 200st 300st or less	Over 300st	X	XA	XB	YY			YL	Z
12	13	8	18	14	48	22	56	41	50	37	20	40	110	200	/	15	25	60	105	/	23	3	3.5	M5X0.8			10	5
16	14.5	10	19	16	54	25	62	46	56	38	24	44	110	200	/	17	27	60	105	/	24	3	3.5	M5X0.8			10	5
20	13.5	10.5	25	18	70	30	81	54	72	44	24	44	120	200	300	29	39	77	117	167	28	3	3.5	M6X1.0			12	17
25	12.5	13.5	30	26	78	38	91	64	82	50	24	44	120	200	300	29	39	77	117	167	34	4	4.5	M6X1.0			12	17

MGPM(Slide bearing)A,DB,E Dimensions
Bore size[mm]	A				DB	E
Bore size[mm]	50st or less	Over 50st 100st or less	Over 100st 200st or less	Over 200st	DB	50st or less	Over 50st 100st or less	Over 100st 200st or less	Over 200st
12	42	60.5	82.5	82.5	8	0	18.5	40.5	40.5
16	46	64.5	92.5	92.5	10	0	18.5	46.5	46.5
20	53	77.5	77.5	110	12	0	24.5	24.5	57
25	53.5	77.5	77.5	109.5	16	0	24	24	56

MGPL(Ball bushing)
MGPM(High precision ball bushing)A,DB,E Dimensions
Bore size[mm]	A				DB	E
Bore size[mm]	30st or less	Over 30st 100st or less	Over 100st 200st or less	Over 200st	DB	30st or less	Over 30st 100st or less	Over 100st 200st or less	Over 200st
12	43	55	84.5	84.5	6	1	13	42.5	42.5
16	49	65	94.5	94.5	8	3	19	48.5	48.5
20	59	76	100	117.5	10	6	23	47	64.5
25	65.5	81.5	100.5	117.5	13	12	28	47	64

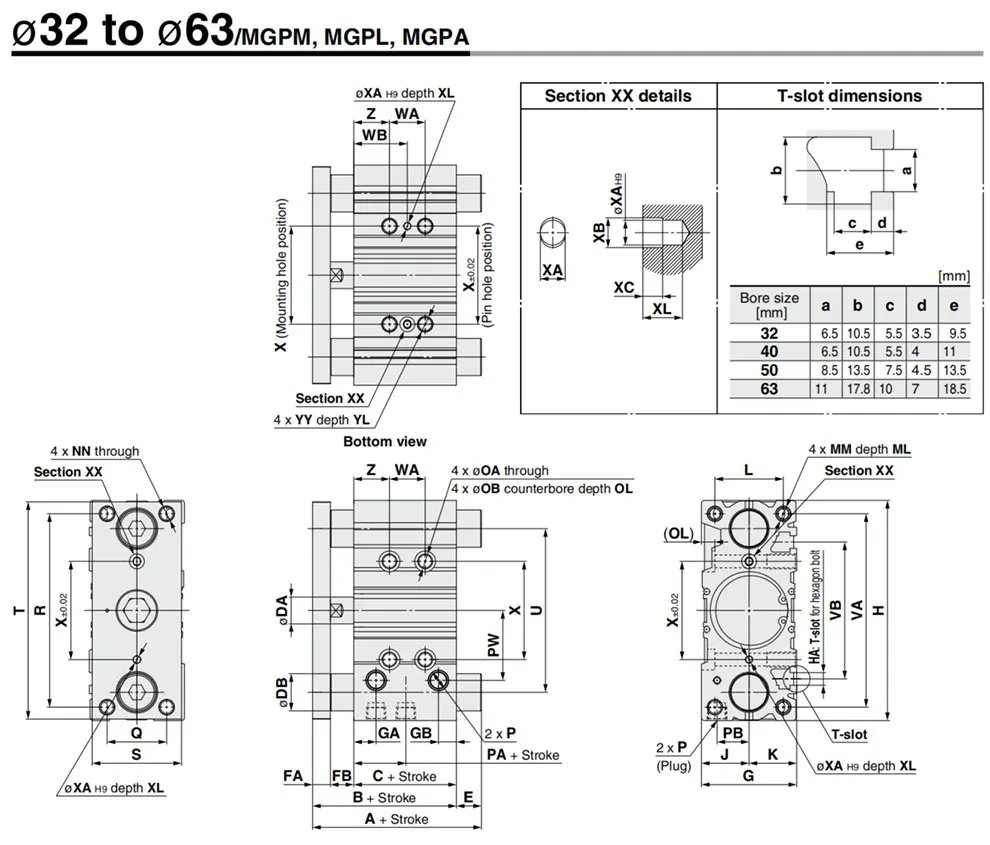

MGPM,MGPL,MGPA Common Dimensions
Bore size[mm]	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	P
Bore size[mm]	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	Nil	TN	TF
32	59.5	37.5	14	10	12	48	12	9	112	M6	24	24	34	M8X1.25	20	M8X1.25	6.7	11	7.5	Rc1/8	NPT1/8	G1/8
40	66	44	14	10	12	54	15	12	120	M6	27	27	40	M8X1.25	20	M8X1.25	6.7	11	7.5	Rc1/8	NPT1/8	G1/8
50	72	44	18	12	16	64	15	12	148	M8	32	32	46	M10X1.5	22	M10X1.5	8.6	14	9	Rc1/4	NPT1/4	G1/4
63	77	49	18	12	16	78	15.5	13.5	162	M10	39	39	58	M10X1.5	22	M10X1.5	8.6	/	9	Rc1/4	NPT1/4	G1/4

Bore size[mm]	PA	PB	PW	Q	R	S	T	U	VA	VB	WA					WB					X	XA	XB	XC	XL	YY	YL	Z
Bore size[mm]	PA	PB	PW	Q	R	S	T	U	VA	VB	25st or less	Over 25st 100st or less	Over 100st 200st or less	Over 200st 300st or less	Over 300st	25st or less	Over 25st 100st or less	Over 100st 200st or less	Over 200st 300st or less	Over 300st	X	XA	XB	XC	XL	YY	YL	Z
32	6.5	16	35.5	30	96	44	110	78	98	63	24	48	124	200	300	33	45	83	121	171	42	4	4.5	3	6	M8X1.25	16	21
40	13	18	39.5	30	104	44	118	86	106	72	24	48	124	200	300	34	46	84	122	172	50	4	4.5	3	6	M8X1.25	16	22
50	9	21.5	47	40	130	60	146	110	130	92	24	48	124	200	300	36	48	86	124	174	66	5	6	4	8	M10X1.5	20	24
63	13	28	58	50	130	70	158	124	142	110	28	52	128	200	300	38	50	88	124	174	80	5	6	4	8	M10X1.5	20	24

MGPM(Slide bearing)A,DB,E Dimensions
Bore size[mm]	A			DB	E
Bore size[mm]	50st or less	Over 50st 200st or less	Over 200st	DB	50st or less	Over 50st 200st or less	Over 200st
32	75	93.5	129.5	20	15.5	34	70
40	75	93.5	129.5	20	9	27.5	63.5
50	88.5	109.5	150.5	25	16.5	37.5	78.5
63	88.5	109.5	150.5	25	11.5	32.5	73.5

MGPL(Ball bushing)
MGPM(High precision ball bushing)A,DB,E Dimensions
Bore size[mm]	A				DB	E
Bore size[mm]	50st or less	Over 50st 100st or less	Over 100st 200st or less	Over 200st	DB	50st or less	Over 50st 100st or less	Over 100st 200st or less	Over 200st
32	79.5	96.5	116.5	138.5	16	20	37	57	79
40	79.5	96.5	116.5	138.5	16	13.5	30.5	50.5	72.5
50	91.5	112.5	132.5	159.5	20	19.5	40.5	60.5	87.5
63	91.5	112.5	132.5	159.5	20	14.5	35.5	55.5	82.5

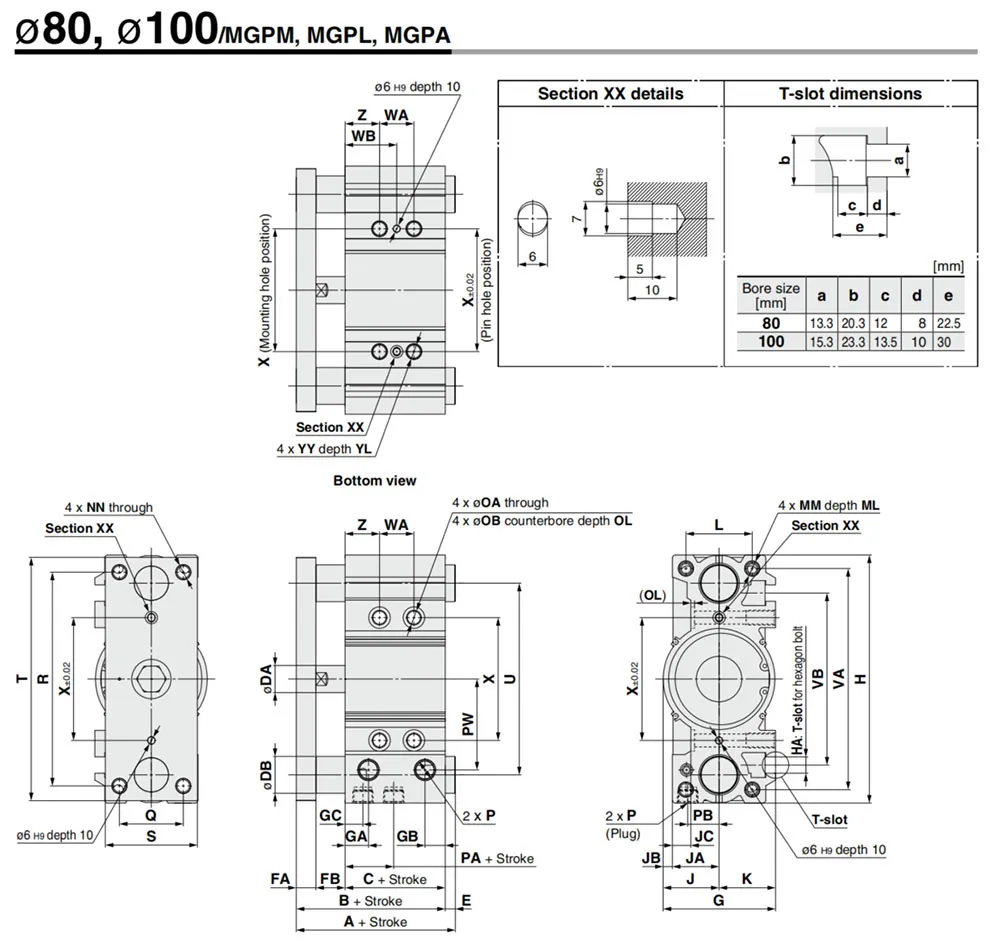

MGPM,MGPL,MGPA Common Dimensions

Bore size[mm]

B

C

DA

FA

FB

G

GA

GB

GC

H

HA

J

JA

JB

JC

K

L

MM

ML

NN

OA

OB

OL

P

Nil

TN

TF

80

96.5

56.5

22

16

24

91.5

19

16.5

14.5

202

M12

45.5

38

7.5

15

46

54

M12X1.75

25

M12X1.75

10.6

17.5

3

Rc1/8

NPT3/8

G3/8

100

116

66

26

19

31

111.5

22.5

20.5

18

240

M14

55.5

45

10.5

10

56

62

M14X2.0

31

M14X2.0

12.5

20

8

Rc1/8

NPT3/8

G3/8

Bore size[mm]	PA	PB	PW	Q	R	S	T	U	VA	VB	WA					WB					X	YY	YL	Z
Bore size[mm]	PA	PB	PW	Q	R	S	T	U	VA	VB	25st or less	Over 25st 100st or less	Over 100st 200st or less	Over 200st 300st or less	Over 300st	25st or less	Over 25st 100st or less	Over 100st 200st or less	Over 200st 300st or less	Over 300st	X	YY	YL	Z
80	14.5	25.5	74	52	174	75	198	156	180	140	28	52	128	200	300	42	54	92	128	178	100	M12X1.75	24	28
100	17.5	32.5	89	64	210	90	236	188	210	166	48	72	148	220	320	35	47	85	121	171	124	M14X2.0	28	11

MGPM(Slide bearing)A,DB,E Dimensions
Bore size[mm]	A			DB	E
Bore size[mm]	50st or less	Over 50st 200st or less	Over 200st	DB	50st or less	Over 50st 200st or less	Over 200st
80	104.5	131.5	180.5	30	8	35	84
100	126.5	151.5	190.5	36	10.5	35.5	74.5

MGPL(Ball bushing)
MGPM(High precision ball bushing)A,DB,E Dimensions
Bore size[mm]	A				DB	E
Bore size[mm]	25st or less	Over 25st 50st or less	Over 50st 200st or less	Over 200st	DB	25st or less	Over 25st 50st or less	Over 50st 200st or less	Over 200st
80	104.5	128.5	158.5	191.5	25	8	32	62	95
100	119.5	145.5	178.5	201.5	30	3.5	29.5	62.5	85.5
