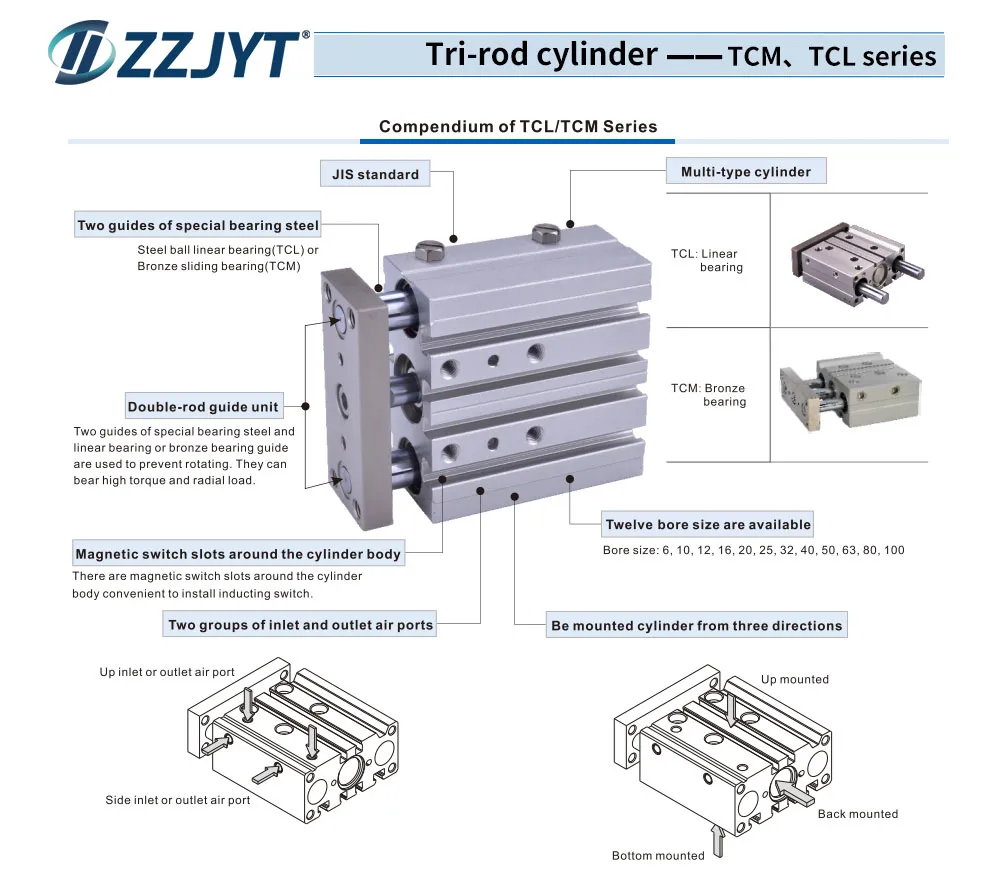

TCM TCL series

Product Details

Bore size(mm)

6

10

12

16

20

25

32

40

50

63

80

100

Acting type

Double acting

Fluid

Air(to be filtered by 40 μ m fiter element)

Operating pressure

0.15~0.7MPa(22~100psi)

0.15~1.0MPa(22~145psi)

Proof pressure

1.2MPa(175psi)

1.5MPa(215psi)

Temperature℃

0~70℃

Speed range mm/s

50~500

30~500

50~400

Cushion type

Bumper

Non-rotating tolerance

±0.1°

±0.10°

±0.09°

±0.08°

±0.06°

±0.05°

Port size

M3*0.5

M5*0.8

1/8″

1/4″

3/8″

Bore size\Item	A	AB	AC	AD	B	BA	C	CA	CB	D	G	K	L	LA	LB	LC	LD	M	MA	MB	N	P	PD	PF
6	29.5	6	23.5	5	30	29	14.5	9	6	5	20.5	M2.5*0.45	M3*0.5	5	20.5	6	9	6	3	9.5	3.5	M3*0.5	9.5	5.5
10	32	6	26	5	34	33	18	10	7.5	6	23	M3*0.5	M4*0.7	5	23	8	11	8	4	8.5	4.5	M3*0.5	11.5	5

Bore size\Item	A				DA				MC				KC
Stroke	≤50	31~100	101~200	>200	≤50	51~100	101~200	>200	≤30	31~100	101~200	>200	≤30	31~100	101~200	>200
12	42	55	85	–	0	13	43	–	20	40	110	–	15	25	60	–
16	46	65	95	–	0	19	49	–	24	44	110	–	17	27	60	–
20	53	80	104	122	0	27	51	69	24	44	120	200	29	39	77	117
25	53.5	82	104.5	122	0	28.5	51	68.5	24	44	120	200	29	39	77	117
Stroke	≤50	51~100	101~200	>200	≤50	51~100	101~200	>200	≤40	41~100	101~200	>200	≤40	41~100	101~200	>200
32	78	102	118	140	5.5	42.5	58.5	80.5	24	48	124	200	33	45	83	121
40	78	102	118	140	0	36	52	74	24	48	124	200	34	46	84	122
50	89	118	134	161	4	46	62	89	24	48	124	200	36	48	86	124
63	89	118	134	161	0	41	57	84	28	52	128	200	38	50	88	124

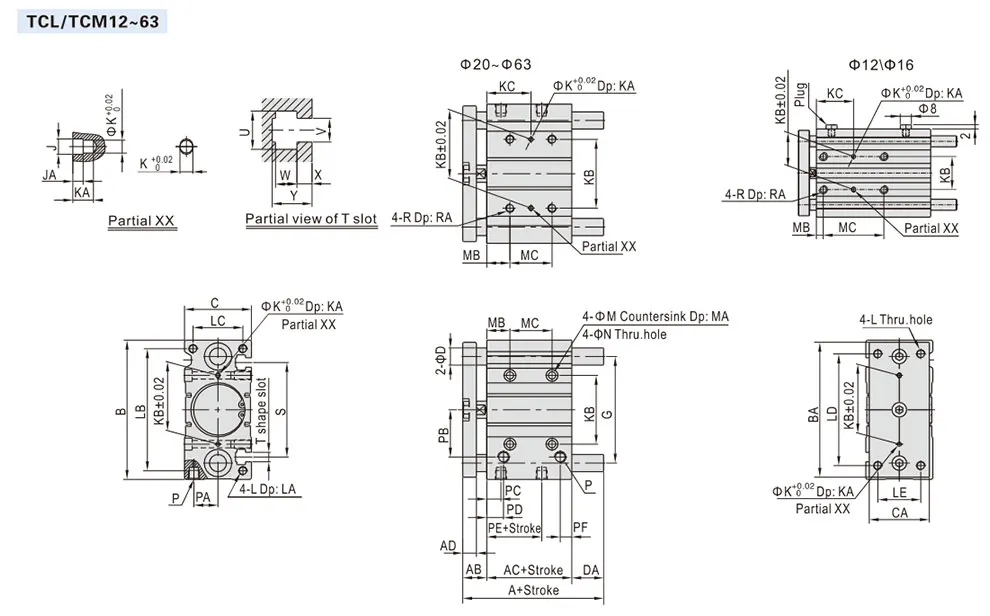

Bore size\Item	AB	AC	AD	B	BA	C	CA	D	G	J	JA	K	KA	KB	L	LA	LB	LC	LD
12	13	29	8	58	56	26	22	6	41	3.5	3	3	6	23	M4*0.7	10	50	18	48
16	13	33	8	64	62	30	25	8	46	3.5	3	3	6	24	M5*0.8	12	56	22	54
20	16	37	10	83	81	36	30	10	54	3.5	3	3	6	28	M5*0.8	13	72	24	70
25	16	37.5	10	93	91	42	38	12	64	4.5	3	4	6	34	M6*1.0	15	82	30	78
32	22	37.5	12	112	110	48	44	16	78	4.5	3	4	6	42	M8*1.25	20	98	34	96
40	22	44	12	120	118	54	44	16	86	4.5	3	4	6	50	M8*1.25	20	106	40	104
50	28	44	16	148	146	64	60	20	110	6	4	5	8	66	M10*1.5	22	130	46	130
63	28	49	16	162	158	78	70	20	124	6	4	5	8	80	M10*1.5	22	142	58	130
Bore size\Item	LE	M	MA	MB	N	P	PA	PB	PC	PD	PE	PF	R	RA	S	U	V	W	X	Y
12	14	8	4.5	5	4.5	M5*0.8	8	18	11	11	13	7.5	M5*0.8	12	37	7.5	4.5	4	2	6.5
16	16	8	4.5	5	4.5	M5*0.8	10	19	11	11	15	8	M5*0.8	10	38	7.5	4.5	4	2.5	7
20	18	9.5	5.5	17	5.5	1/8″	10.5	25	10.5	10.5	12.5	9	M6*1.0	12	44	8.5	5.5	4.5	3	8
25	26	9.5	5.5	17	5.5	1/8″	13.5	28.5	11.5	11.5	12.5	9	M6*1.0	12	50	8.5	5.5	4.5	3	8.5
32	30	11	7.5	21	6.5	1/8″	16	34	12.5	12.5	7	9	M8*1.25	16	63	10.5	6.5	5.5	3.5	9.5
40	30	11	7.5	22	6.5	1/8″	18	38	14	14	13	10	M8*1.25	16	72	10.5	6.5	5.5	4	11
50	40	14	9	24	8.5	1/8″	21.5	47	12	14	9	11	M10*1.5	20	92	13.5	8.5	7.5	4.5	13.5
63	40	14	9	24	8.5	1/4″	28	55	16.5	16.5	14	13.5	M10*1.5	20	110	18	11	10	7	18.5

Item\Stroke(TCM80)	25	30	40	50	60	70	75	80	100	125	150	175	200	225	250
A	112.5					165.5						187.5
DA	16					69						91
KC	42			54						92				128
MC	28			52						128				200

Item\Stroke(TCM100)	25	30	40	50	60	70	75	80	100	125	150	175	200	225	250
A	128					186						208
DA	12					70						92
KC	35			47						85				121
MC	48			72						148				220
