| Bore size(mm) | 6 | 10 | 16 |
| Fluid | Air (to be filtered by 40 u m filter element) | ||
| Acting type | Double acting | ||
| Maximum operating pressure Mpa | 0.7 | ||
| Minimum operating pressure Mpa | 0.12 | 0.06 | |
| Ambient and fluid temperatures | With magnetic switch：-10℃~70℃ Without magnetic switch：-10℃~60℃ | ||
| Piston speed | 50~750mm/s | ||
| Buffer | Rubber buffer/air buffer | ||
| Stroke tolerance (mm) | ₊₀º·¹ | ||
| Give oil | NO | ||
| Port size | M5*0.8 | ||

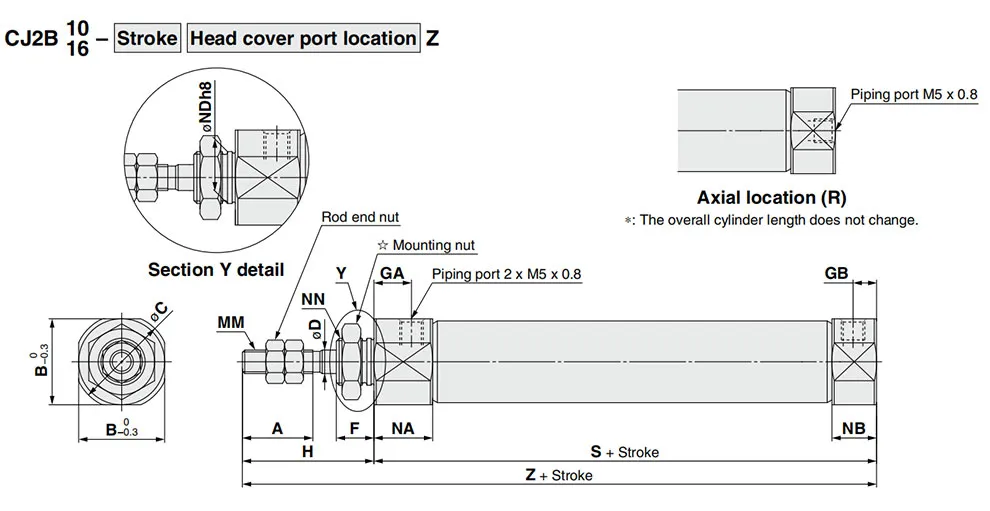

| Bore size/Item | A | B | C | D | F | GA | GB | H | MM | NA | NB | Hdh8 | NN | S | T | Z |
| 6 | 15 | 12 | 14 | 3 | 8 | 14.5 | – | 28 | M3*0.5 | 16 | 7 | 6 | M6*1.0 | 49 | 3 | 77 |
| 10 | 15 | 12 | 14 | 4 | 8 | 8 | 5 | 28 | M4*0.7 | 12.5 | 9.5 | 8 | M8*1.0 | 46 | – | 74 |
| 16 | 15 | 18.3 | 20 | 5 | 8 | 8 | 5 | 28 | M5*0.8 | 12.5 | 9.5 | 10 | M10*1.0 | 47 | – | 75 |
