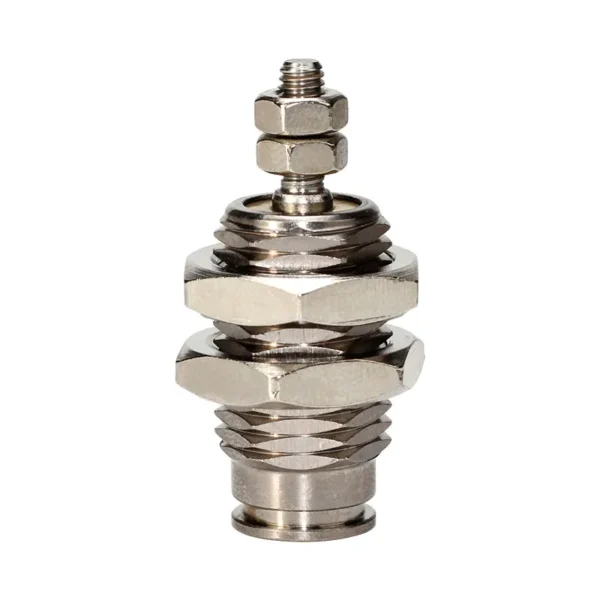

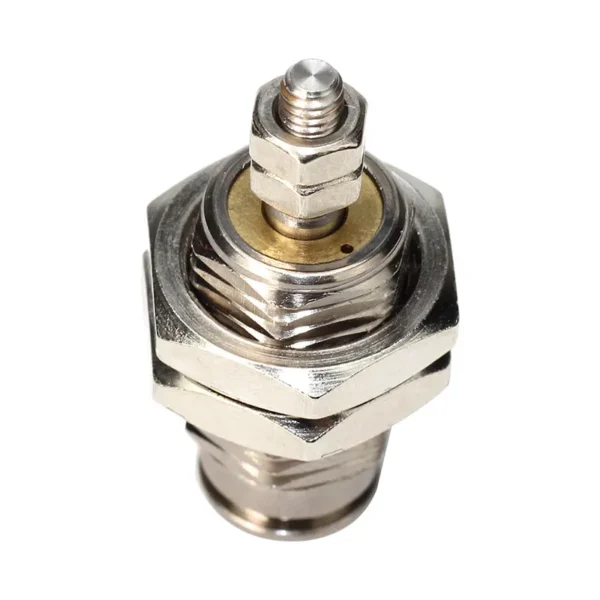

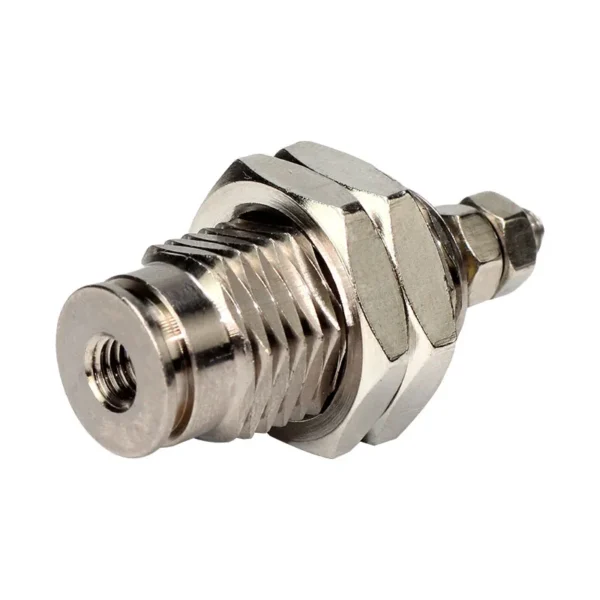

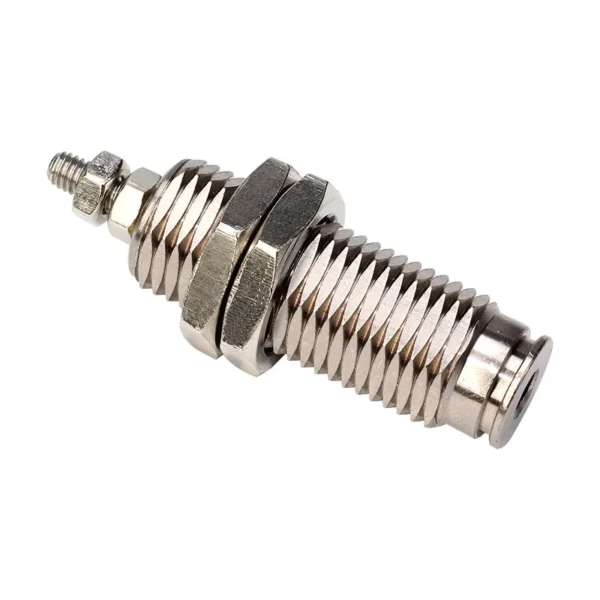

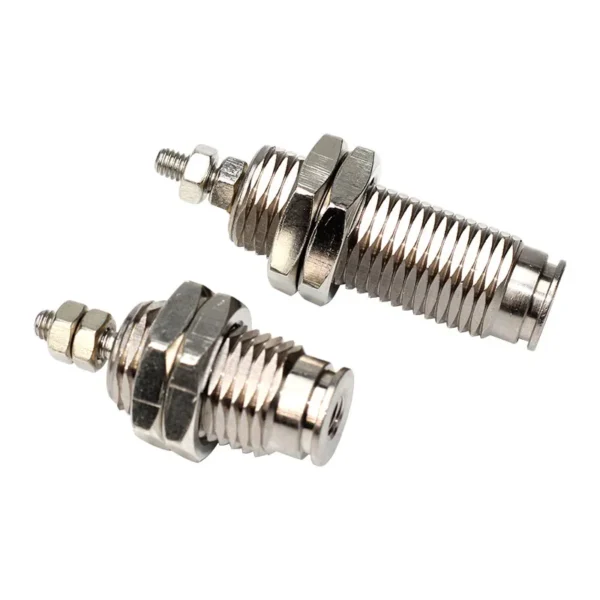

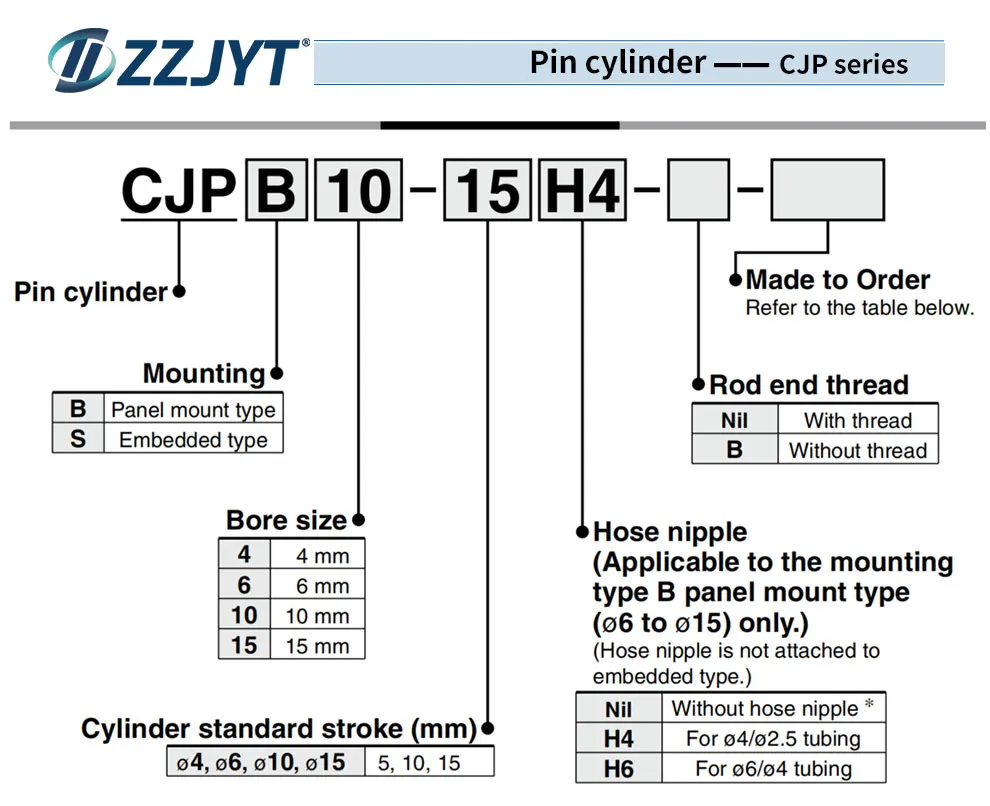

| Action | Single acting, Spring return | ||
| Maximum operating pressure | 0.7 MPa | ||
| Minimum operating pressure | Φ4 | 0.3 MPa | |
| Φ6 | 0.2 MPa | ||
| Φ10，Φ15 | 0.15 MPa | ||
| Proof pressure | 1 MPa | ||
| Ambient and fluid temperature | 0 to 70°C (No freezing) | ||
| Lubrication | Not required (Non-lube) | ||
| Piston speed | 50 to 500 mm/s | ||
| Cushion | None | ||
| Rod end type | With thread/Without thread | ||
| Mounting | Panel mount type | Embedded type | |

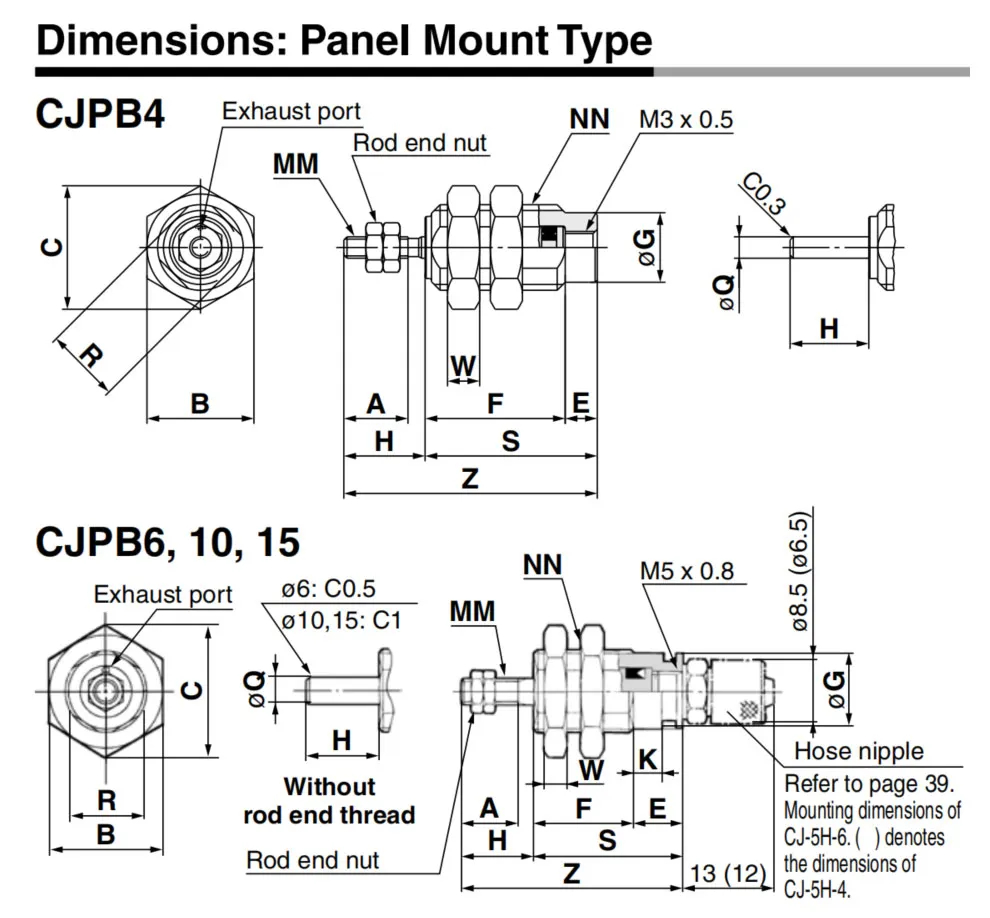

| Bore sizep[mm] | A | B | C | E | F | G | H | K | MM | ||
| 5 st | 10 st | 15 st | |||||||||
| 4 | 6 | 10 | 11.5 | 3 | 13 | 21 | 29 | 6.5 | 7.5 | / | M2X0.4 |
| 6 | 7 | 12 | 13.9 | 6 | 12.5 | 19.5 | 26.5 | 8.5 | 9 | 3.5 | M3X0.5 |
| 10 | 10 | 19 | 22 | 6 | 14.5 | 21 | 28 | 12 | 12 | 3.5 | M4X0.7 |
| 15 | 12 | 27 | 31 | 7 | 16.5 | 22.5 | 29 | 19 | 14 | 4.2 | M5X0.8 |
| Bore sizep[mm] | NN | R | S | W | Z | Q | ||||
| 5 st | 10 st | 15 st | 5 st | 10 st | 15 st | |||||
| 4 | M8X1.0 | 7 | 16 | 24 | 32 | 3 | 23.5 | 31.5 | 39.5 | 2 |
| 6 | M10X1.0 | 9 | 18.5 | 25.5 | 32.5 | 3 | 27.5 | 34.5 | 41.5 | 3 |
| 10 | M15X1.5 | 13 | 20.5 | 27 | 34 | 4 | 32.5 | 39 | 46 | 5 |
| 15 | M22X1.5 | 20 | 23.5 | 29.5 | 36 | 5 | 37.5 | 43.5 | 50 | 6 |
