| Bore size(mm) | 20 | 25 | 32 | 40 | ||
| Type | Pneumatic | |||||
| Action | Double acting,Single rod | |||||
| Fluld | Air | |||||
| Proof pressure | 1.5MPa | |||||
| Maximum operating pressure | 1.0MPa | |||||
| Minimum operating pressure | 0.05MPa | |||||
| Ambient and fluid temperature | Without auto switch：-10℃~70℃（(No freezing） With auto switch：-10℃~60℃（(No freezing） | |||||
| Lubrication | Not required (Non-lube) | |||||
| Piston speed | Rubber bumper:50~750mm/s | |||||

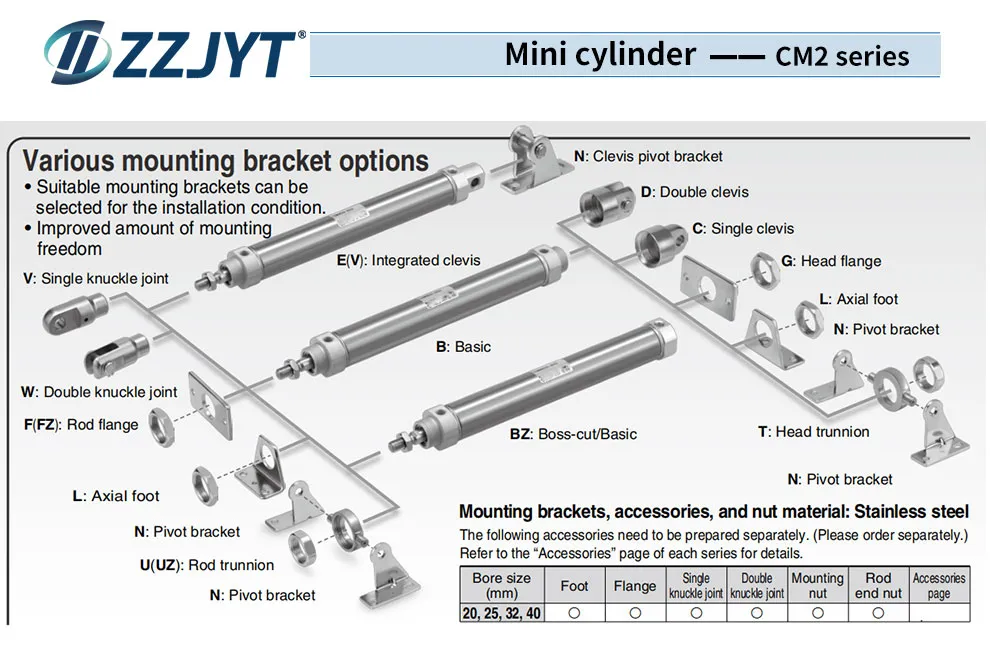

| Cushion | Rubber bumper, Air cushion | |||||

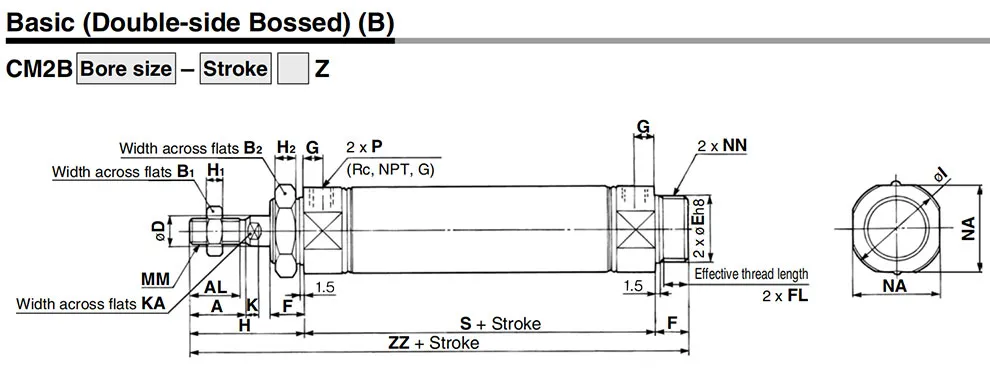

| Bore size(mm) | A | AL | B1 | B2 | D | E | F | FL | G | H | H1 | H2 | I | K | KA | MM | NA | NN | P | S | ZZ |
| 20 | 18 | 15.5 | 13 | 26 | 8 | 20_⁰₀․₀₃₃ | 13 | 10.5 | 8 | 41 | 5 | 8 | 28 | 5 | 6 | M8*1.25 | 24 | M20×1.5 | 1/8 | 62 | 116 |
| 25 | 22 | 19.5 | 17 | 32 | 10 | 26_⁰₀․₀₃₃ | 13 | 10.5 | 8 | 45 | 6 | 8 | 33.5 | 5.5 | 8 | M10*1.25 | 30 | M26×1.5 | 1/8 | 62 | 120 |
| 32 | 22 | 19.5 | 17 | 32 | 12 | 26_⁰₀․₀₃₃ | 13 | 10.5 | 8 | 45 | 6 | 8 | 37.5 | 5.5 | 10 | M10*1.25 | 34.5 | M26×1.5 | 1/8 | 64 | 122 |
| 24 | 24 | 21 | 22 | 41 | 14 | 32_⁰₀․₀₃₉ | 16 | 13.5 | 11 | 50 | 8 | 10 | 46.5 | 7 | 12 | M14*1.5 | 42.5 | M32×2 | 1/4 | 88 | 154 |
