| Bore size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
| Acting type | Single acting | – | ||||||
| Double acting | – | |||||||
| – | Double acting | |||||||
| Double acting with cushion | ||||||||
| Fluid | Air (to be filtered by 40 u m filter element) | |||||||
| Operating pressure | Double acting | 0.15-1.0MPa(22-145psi)(1.5-10.0bar) | ||||||
| Single acting | 0.2-1.0MPa(28-145psi)(2.0-10.0bar) | |||||||
| Proof pressure | 1.5MPa(215psil)(15bar) | |||||||
| Temperature℃ | -20-70℃ | |||||||
| Speed range mm/s | Double acting: 30-800 Single acting: 50-800 | |||||||
| Stroke tolerance | ||||||||

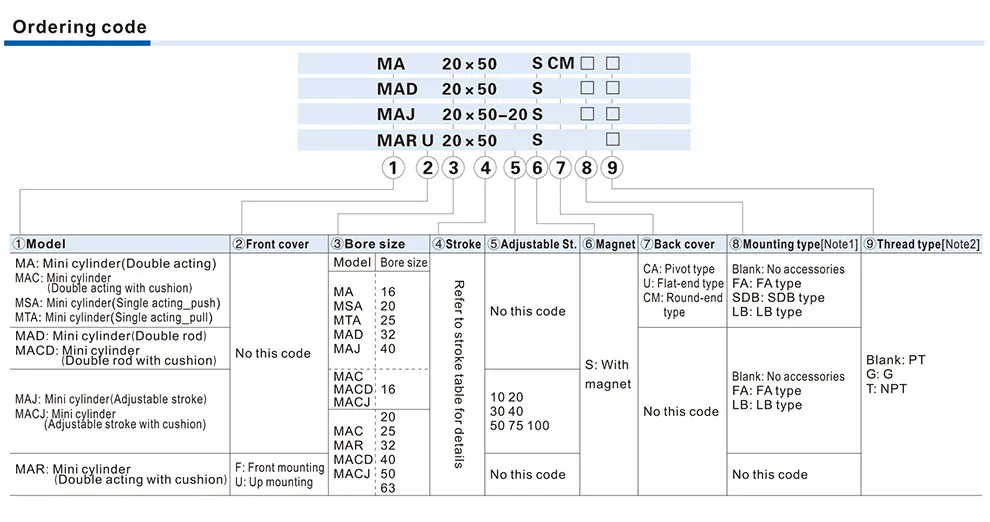

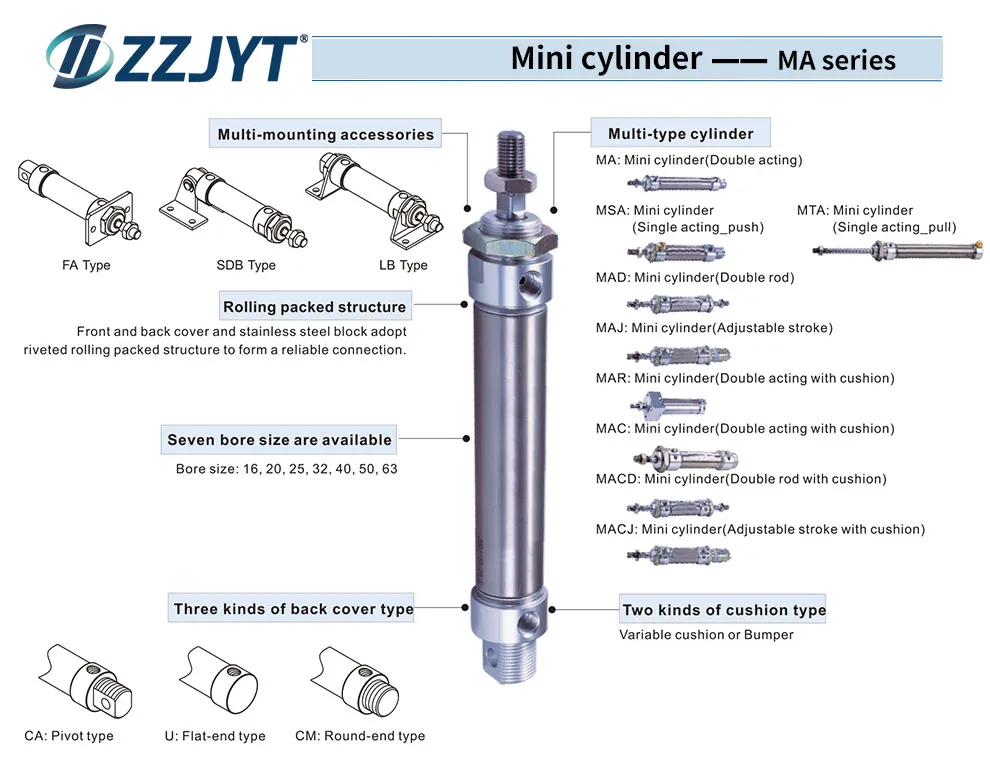

| Cushion type | MAC/MACD/MACJ Series: Variable cushion Other series:Bumper | |||||||
| Port size [Note1] | M5×0.8 | 1/8″ | 1/4″ | |||||

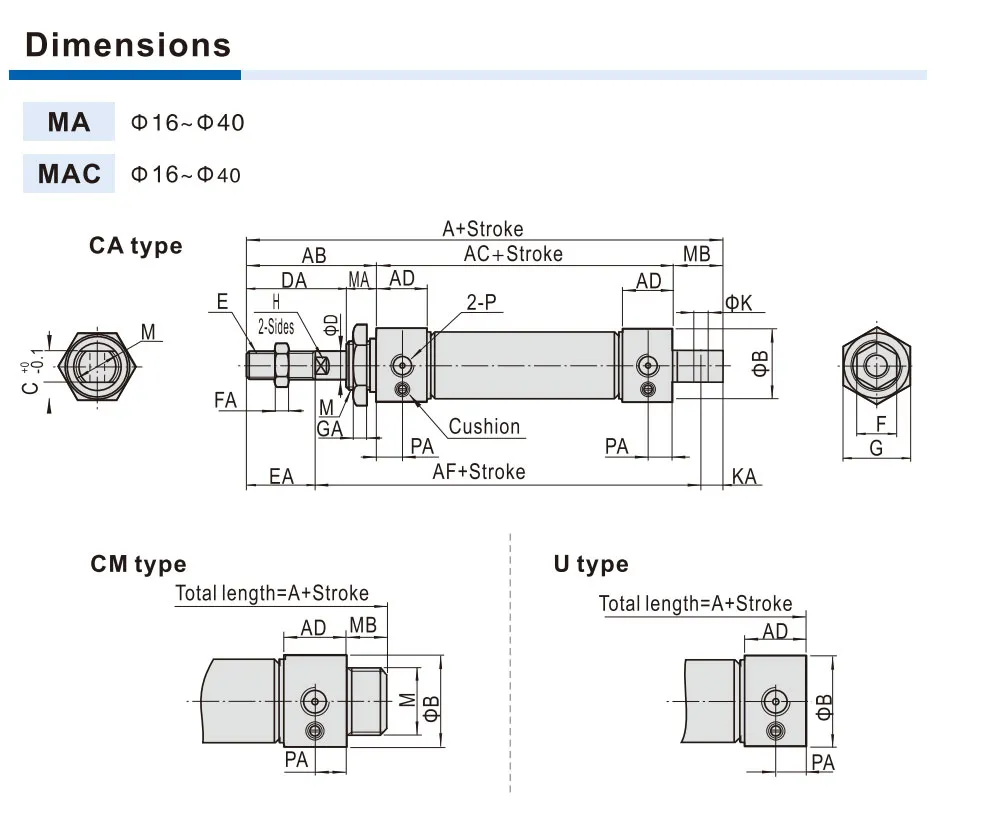

| Bore size/Item | A | AB | AC | AD | AF | B | C | D | DA | E | EA | F | FA | G | GA | H | K | KA | M | MA | MB | P | PA | |||
| Back cover | CA | CM | U | CA | CM | |||||||||||||||||||||
| 16 | 114 | 114 | 98 | 38 | 60 | 12.5 | 91 | 21 | 12 | 6 | 22 | M6*1.0 | 16 | 10 | 5 | 22 | 6 | 5 | 6 | 7 | M16*1.25 | 16 | 16 | 16 | M5*0.8 | 7.5 |
| 20 | 137 | 128 | 116 | 40 | 76 | 16 | 108 | 27 | 16 | 8 | 28 | M8*1.25 | 20 | 12 | 6 | 29 | 7 | 6 | 8 | 9 | M22*1.25 | 12 | 21 | 12 | 1/8″ | 8 |
| 25 | 141 | 134 | 120 | 44 | 76 | 16 | 110 | 30 | 16 | 10 | 30 | M10*1.25 | 22 | 17 | 6 | 29 | 7 | 8 | 8 | 9 | M22*1.25 | 14 | 21 | 14 | 1/8″ | 8 |
| 32 | 147 | 134 | 120 | 44 | 76 | 16 | 113 | 35 | 16 | 12 | 30 | M10*1.25 | 22 | 17 | 6 | 32 | 8 | 10 | 10 | 12 | M24*1.25 | 14 | 27 | 14 | 1/8″ | 8 |
| 40 | 149 | 136 | 122 | 46 | 76 | 16.5 | 113 | 41.5 | 20 | 16 | 32 | M12*1.25 | 24 | 17 | 7 | 41 | 8 | 14 | 12 | 12 | M830*1.25 | 14 | 27 | 14 | 1/8″ | 9 |
