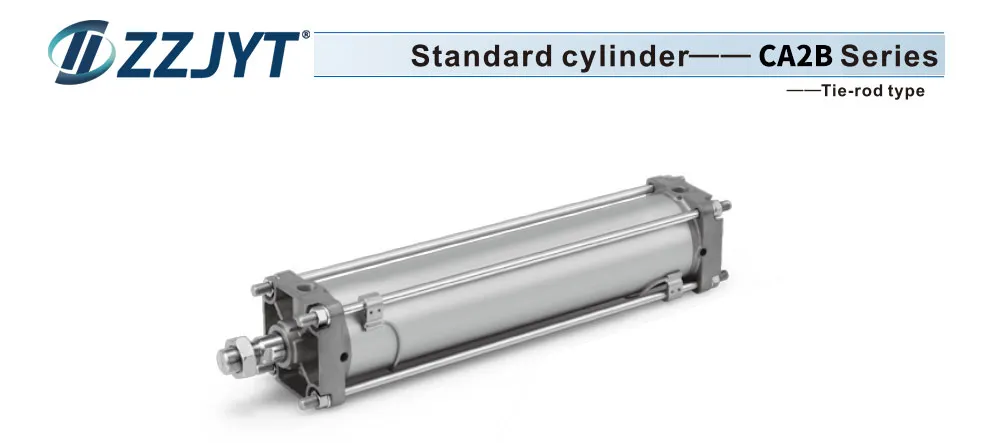

Description

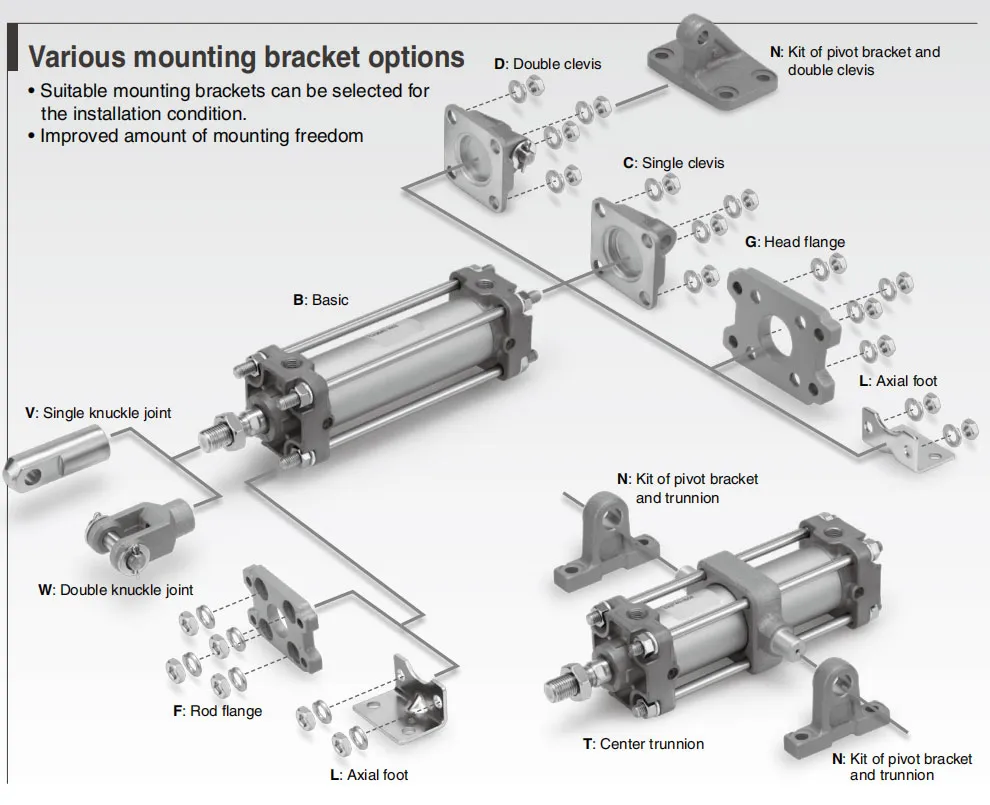

| Bore size(mm) | 40 | 50 | 63 | 80 | 100 |
| Fluid | Air | ||||
| Action | Double acting | ||||
| Proof pressure | 1.5 MPa | ||||
| Maximum operating pressure | 1.0 MPa | ||||
| Ambient and fluid temperature | Without auto switch: 0 to 70℃ With auto switch : 0 to 60℃ | ||||
| Minimum operating pressure | 0.05 MPa | ||||
| Piston speed | 50 to 500 mm/s | ||||
| Cushion | Air cushion or Rubber bumper | ||||
| Mounting | Basic,Foot,Rod flange,Head flange Single clevis,Double clevis,Center trunnion | ||||
| Pneumatic connection | 1/4 | 3/8 | 1/2 | ||

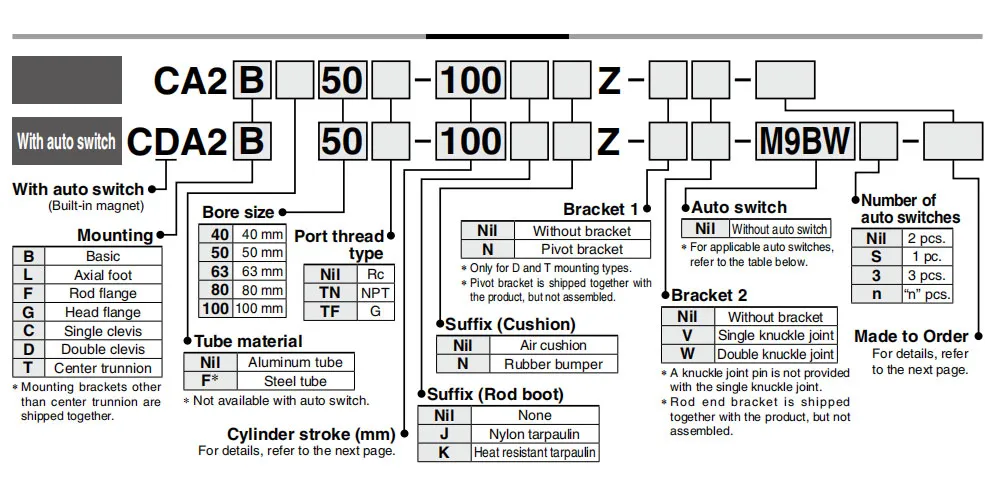

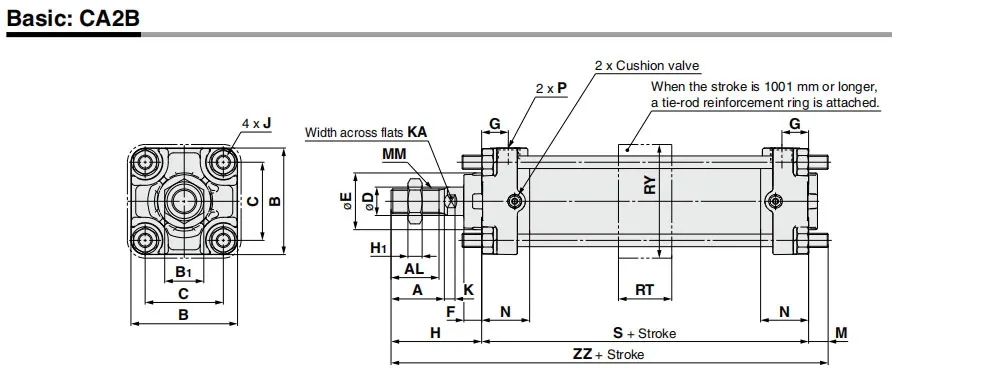

| Bore size(mm) | A | AL | B | B1 | C | D | E | F | G | H1 | J | K | KA | M | MM |
| 40 | 30 | 27 | 60 | 22 | 44 | 16 | 32 | 10 | 15 | 8 | M8X1.25 | 6 | 14 | 11 | M14X1.5 |
| 50 | 35 | 32 | 70 | 27 | 52 | 20 | 40 | 10 | 17 | 11 | M8X1.25 | 7 | 18 | 11 | M18X1.5 |
| 63 | 35 | 32 | 85 | 27 | 64 | 20 | 40 | 10 | 17 | 11 | M10X1.25 | 7 | 18 | 14 | M18X1.5 |
| 80 | 40 | 37 | 102 | 32 | 78 | 25 | 52 | 14 | 21 | 13 | M12X1.75 | 10 | 22 | 17 | M22X1.5 |
| 100 | 40 | 37 | 116 | 41 | 92 | 30 | 52 | 14 | 21 | 16 | M12X1.75 | 10 | 26 | 17 | M26X1.5 |
| Bore size(mm) | N | P | RT | RY | S | H |
| 40 | 27 | 1/4 | 30 | 64 | 84 | 51 |
| 50 | 30 | 3/8 | 30 | 76 | 90 | 58 |
| 63 | 31 | 3/8 | 40 | 92 | 98 | 58 |
| 80 | 37 | 1/2 | 45 | 112 | 116 | 71 |
| 100 | 40 | 1/2 | 50 | 136 | 126 | 72 |
