Standard Cylinder

CP96 Series Standard Cylinder | Durable Pneumatic Automation Cylinder

CP96 standard cylinder designed for industrial automation, providing high precision, corrosion resistance, and stable pneumatic control.

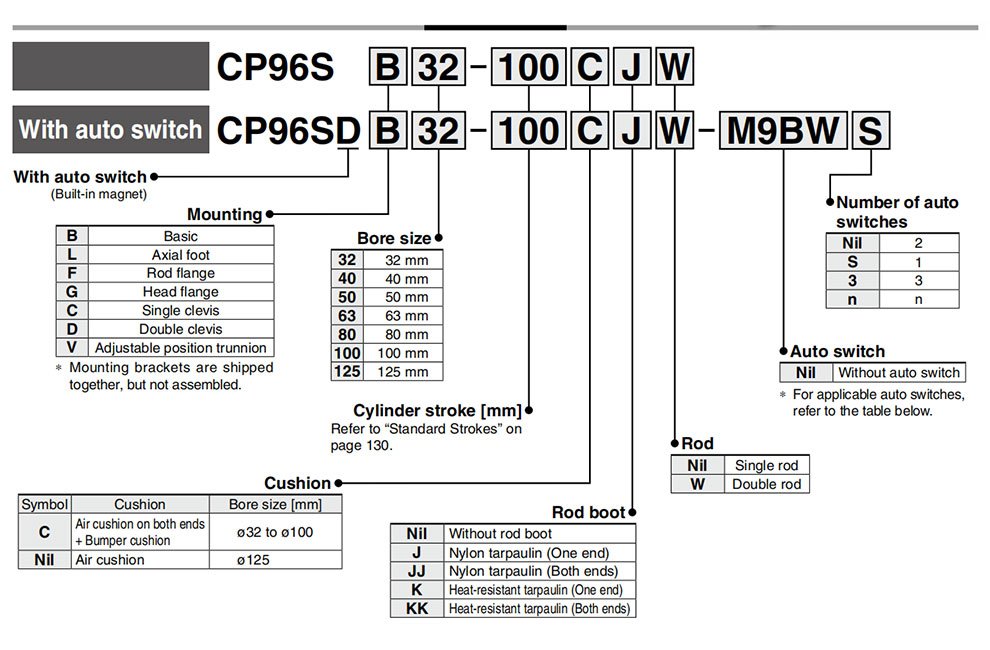

Specifications
Bore size [mm]		32	40	50	63	80	100	125
Action		Double acting
Fluid		Air
Proof pressure		1.5 MPa
Max. operating pressure		1.0 MPa
Min. operating pressure		0.05 MPa
Ambient and fluidtemperatures		Without auto switch: -20 to 70C (No freezing) With auto switch: -10 to 60C (No freezing)
Lubrication		Not required (Non-lube)
Operating piston speed		50 to 1000 mm/s						50 to 700 mm’s
Allowable stroketolerance	Up to 500	＋2 0						＋1.0 0
	501 to 1000	＋2.4 0						＋1.4 0
	1001 to 1500	＋2.8 0						＋1.8 0
	1501 to 2000	＋3.2 0						＋2.2 0
Cushion		Air cushion on both ends + Bumper cushion						Air cushion
Port size		G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G1/2

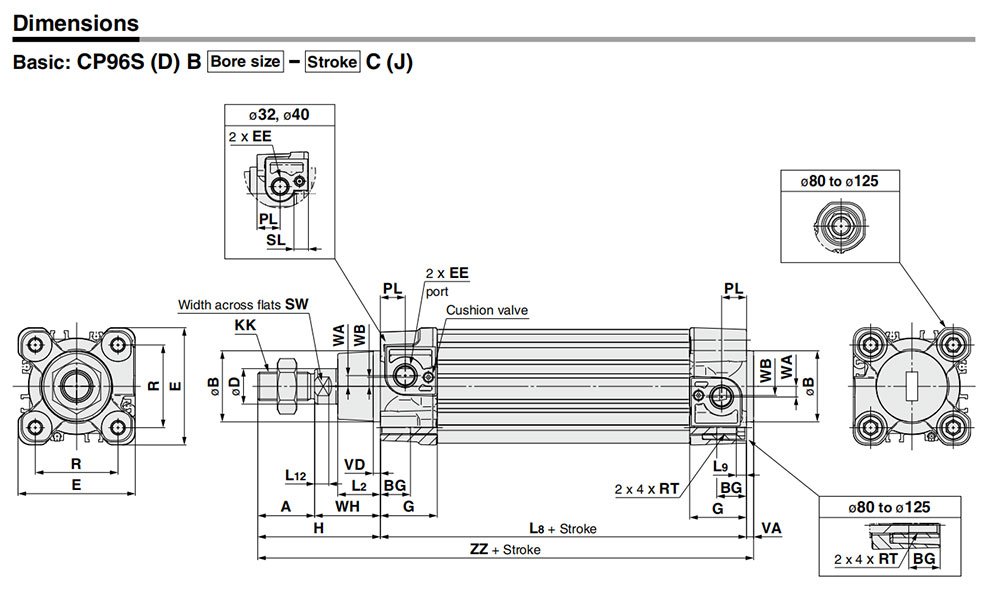

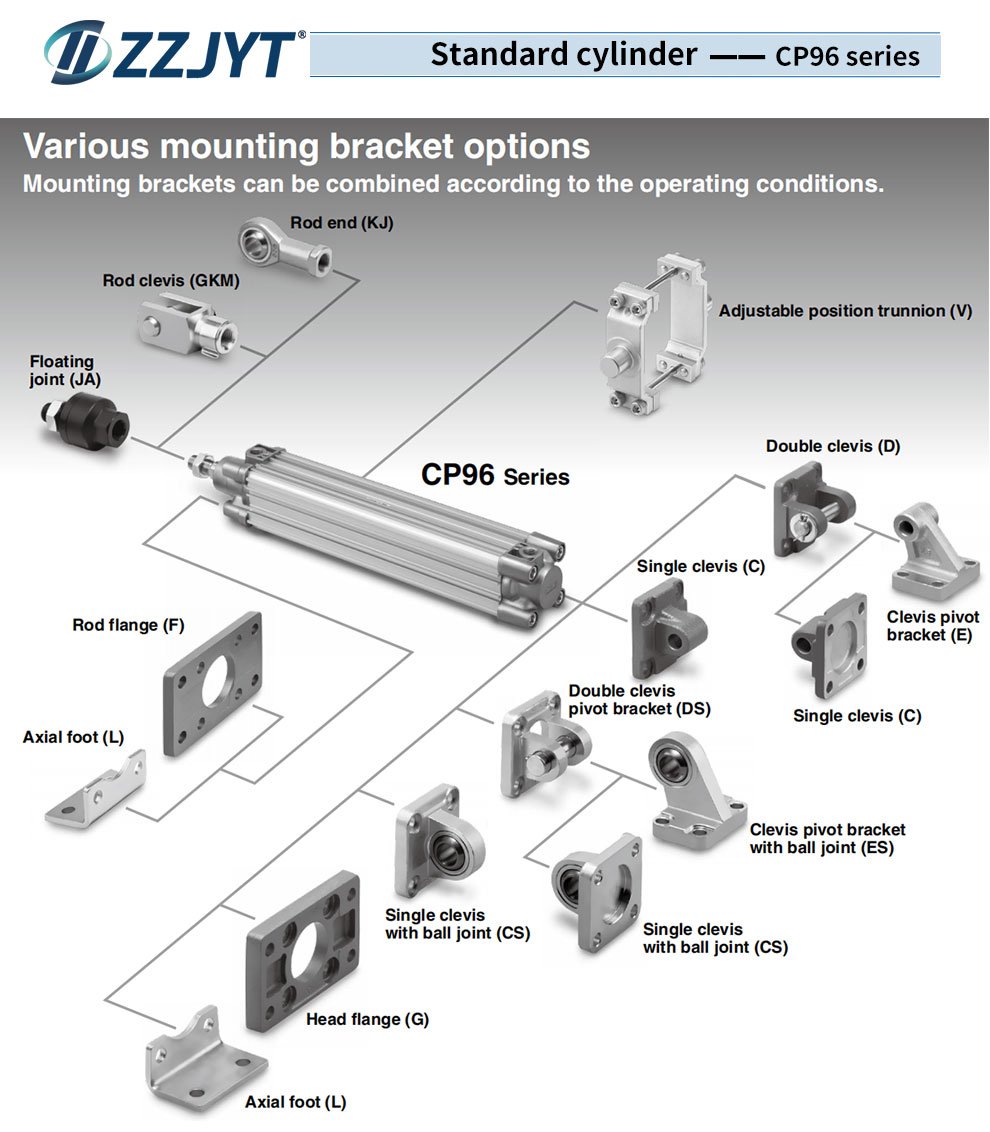

Mounting		Basic, Axial foot, Rod flange, Head flange, Single clevis, Double clevis, Center trunnion, Adjustable position trunnion
