SC Series

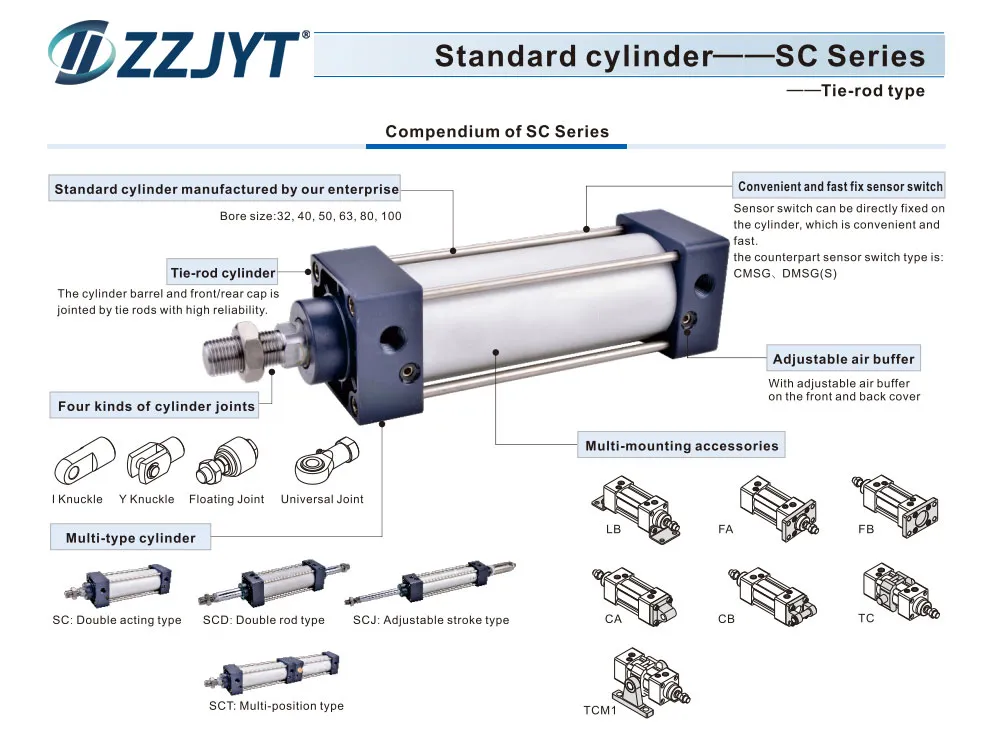

Standard cylinder manufactured by our enterprise
The seal of piston adopts heterogeneous two way seal structure.lt’s dimension is tight and it has the function of grease reservation.
lt is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
Compared with ISO15552 standard cylinder, SC series cylinderwith the same bore size is shorter.
The buffer adjustment of cylinder is smooth and steady.
Cylinders and mounting accessories with several specificationsare optional.
The seal material with high temperature resistance is adoptedto guarantee the normal operation of cylinder at 150C

Product Details

Bore size（mm）		32	40	50	63	80	100	125	160	200	250
Acting type		Double acting
Fluid		Air(to be filtered by 40 μm filter element)

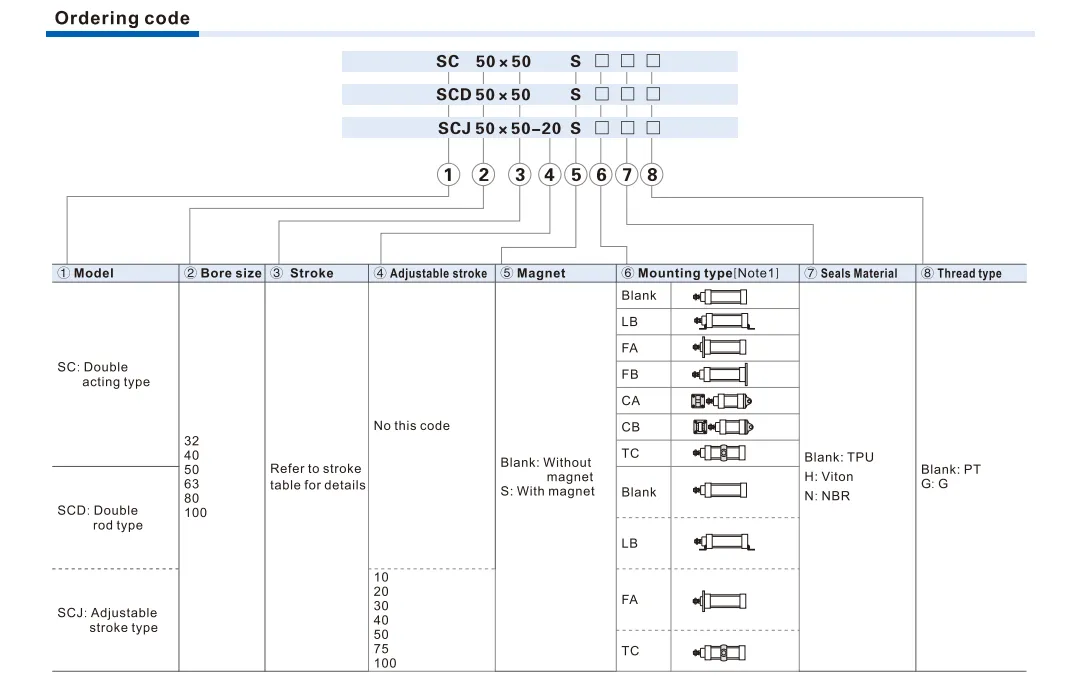

Mounting type	SC	Basic FA FB CA CB LB TC TCM1
	SCD、SCJ	Basic FA LB TC TCM1
Operating pressure		0.15～1.0MPa(22-145psi)（1.5～10.0bar)
Proof pressure		1.5MPa(215psi)(15bar)
Temperature ℃		0～70
Speed range mm/s		30～800
Stroke tolerance		0～250 251～1000 1001～1500
Cushion type		Variable cushion
Adjustable cushion stroke		21				28	29	28	29	33	40
Port size		1/8″	1/4″		3/8″		1/2″		3/4″		1″

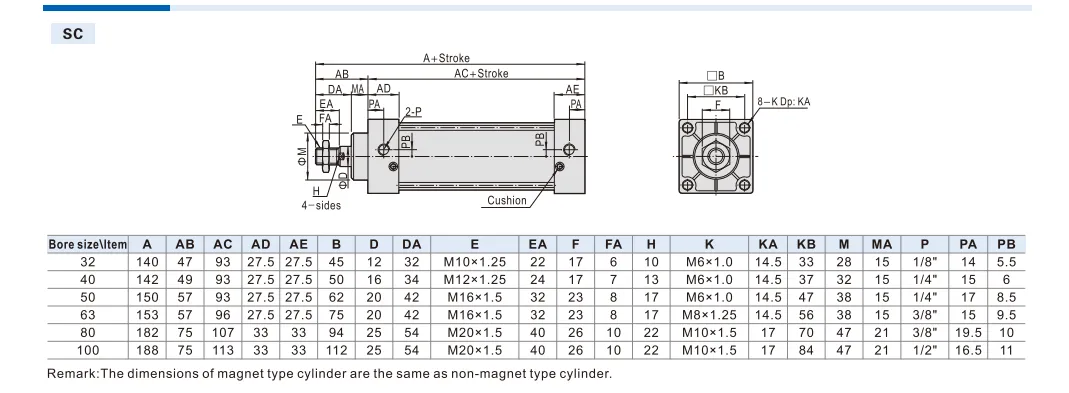

Bore size\Item	A	AB	AC	AD	AE	B	D	DA	E	EA	F	FA	H	K	KA	KB	M	MA	P	PA	PB
32	140	47	93	27.5	27.5	45	12	32	M10X1.25	22	17	22	10	M6X1.0	14.5	33	28	15	1/8″	14	5.5
40	142	49	93	27.5	27.5	50	16	34	M12X1.25	24	17	24	13	M6X1.0	14.5	37	32	15	1/4″	15	6
50	150	57	93	27.5	27.5	62	20	42	M16X1.5	32	23	32	17	M6X1.0	14.5	47	38	15	1/4″	17	8.5
63	153	57	96	27.5	27.5	75	20	42	M16X1.5	32	23	32	17	M8X1.25	14.5	56	38	15	3/8″	15	9.5
80	182	75	107	33	33	94	25	54	M20X1.5	40	26	40	22	M10X1.5	17	70	47	21	3/8″	19.5	10
100	1822	75	113	33	33	112	25	54	M20X1.5	40	26	40	22	M10X1.5	17	84	47	21	1/2″	16.5	11
125	203	88	115	38	38	136	32	68	M27X2.0	54	41	13.5	27	M12X1.75	21.5	104	52	20	1/2″	20	14
160	239	113	126	38	38	174	40	88	M36X2.0	72	55	18	36	M16X2.0	21	134	62	25	3/4″	20	15
200	244	118	126	38	38	214	40	88	M36X2.0	72	55	18	36	M16X2.0	21	163	62	30	3/4″	20	15
250	294	141	153	48	48	267	50	106	M42X2.0	84	65	21	46	M20X2.5	26.5	202	86	35	1″	25.5	22
