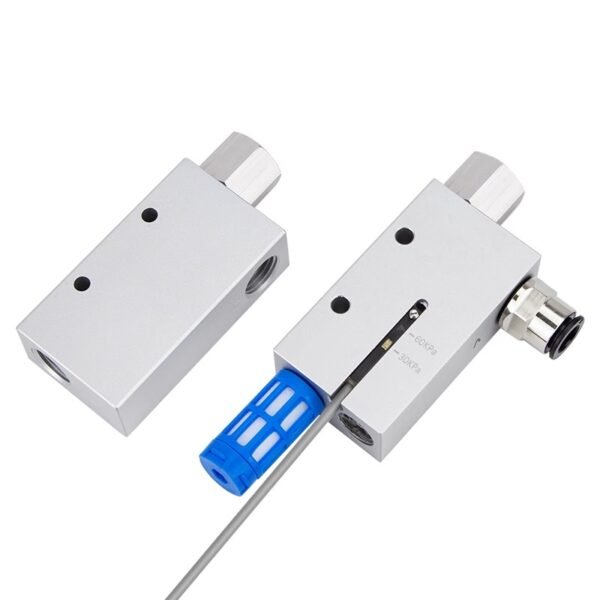

Description
The advantages of CV vacuum generator are obvious. Firstly, its vacuum generation speed is fast, which can quickly form a vacuum environment and effectively improve work efficiency. Secondly, the structure is exquisite and the volume is small, making it easy to install in various compact equipment layouts. Furthermore, the stable vacuum degree ensures stable adsorption of objects and reduces errors. And it has low energy consumption, which can save energy costs. It also performs well in durability, has a long service life, is easy to maintain, and reduces maintenance costs. At the same time, it has a wide range of applicability and can be flexibly applied to different industrial scenarios, such as automated production, material handling, and many other fields.
Specifications
| Description ＼ Model number | Unit | CV-05HS | CV-10HS | CV-15HS | CV-20HS | CV-25HS |
| Nozzle size | mm | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 |
| Fluid | Non-lubricated compressed air | |||||
| Ambient temperature | ℃ | 0～60（No Freezing） | ||||
| Operating pressure range | MPa | 0.1～0.6 | ||||
| Rated pressure | MPa | 0.5 | ||||
| Maximum vacuum pressure | kPa | -87 | -92 | |||
| Suction flow | L/min(ANR) | 6 | 27 | 63 | 110 | 160 |
| Air consumption | L/min(ANR) | 13 | 44 | 100 | 180 | 265 |
| CV series -92Kpa | ||||
| Product photo | SUP | VAC | MUFFER | Model |
 | 1/8 | 1/8 | 1/8 | CV-05HS |
| 1/8 | 1/8 | 1/8 | CV-10HS | |
| 1/4 | 1/4 | 1/4 | CV-15HS | |
| 1/4 | 3/8 | 1/2 | CV-20HS | |
| 3/8 | 3/8 | 1/2 | CV-25AHS | |
| 3/8 | 1/2 | 3/4 | CV-25HS | |
| 1/2 | 3/4 | 3/4 | CV-30HS | |

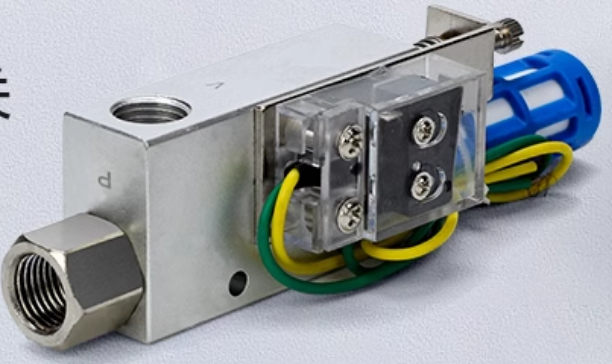

| Equipped with adjustable pressure switch
| 1/8 | 1/8 | 1/8 | CV-05HSCK |
| 1/8 | 1/8 | 1/8 | CV-10HSCK | |
| 1/4 | 1/4 | 1/4 | CV-15HSCK | |
| 1/4 | 3/8 | 1/2 | CV-20HSCK | |
| 3/8 | 3/8 | 1/2 | CV-25AHSCK | |
| 3/8 | 1/2 | 3/4 | CV-25HSCK | |
| 1/2 | 3/4 | 3/4 | CV-30HSCK | |
