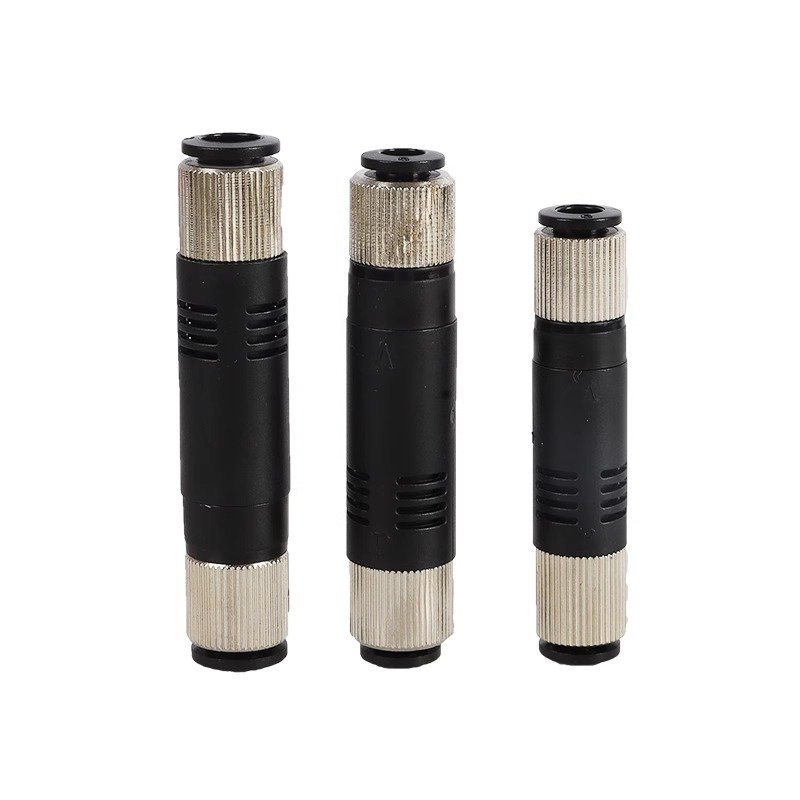

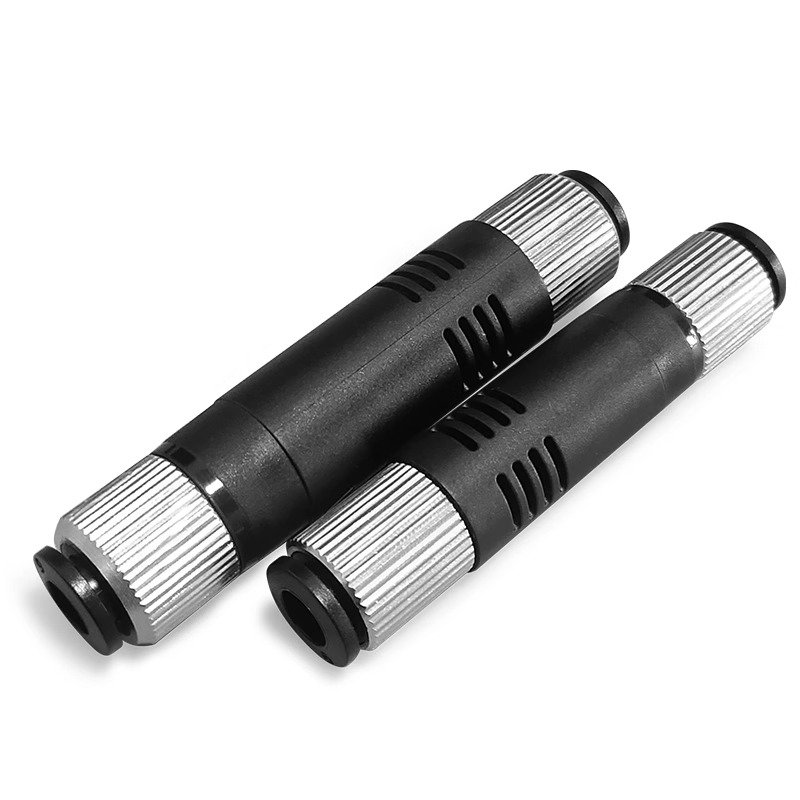

The VML vacuum generator has significant advantages with a built-in muffler. In terms of noise reduction, it can effectively reduce exhaust noise, provide a quiet working environment, and reduce noise pollution. Its integrated design makes the structure more compact, reduces installation space and steps, enhances stability, reduces exhaust resistance, improves vacuum efficiency and response speed, and extends equipment life. In addition, it reduces procurement and maintenance costs, eliminates the need to purchase mufflers separately, and reduces maintenance points and costs.
| Fluid | Air |
| Pressure range(MPa(kPa)) | 0.1~ 0.6 ( 100 ~ 600 ) |
| Operating pressure(MPa(kPa)) | 0.5 (500) |
| Vacuum pressure(kPa(mmHg)) | -91.8 |
| Nozzle diameter(mm) | 0.5、0.7、1.0、1.5 |
| Ambient and fluid temperature(°C) | 5~60 |
| Material-Body | Copper (Nickel plating) |
| Material-Plastic | NYLON、PBT、PP |
| Port size(Rc (PT)) | M5x0.8P、1/8 |
| Thread | With thread glue |
