Description

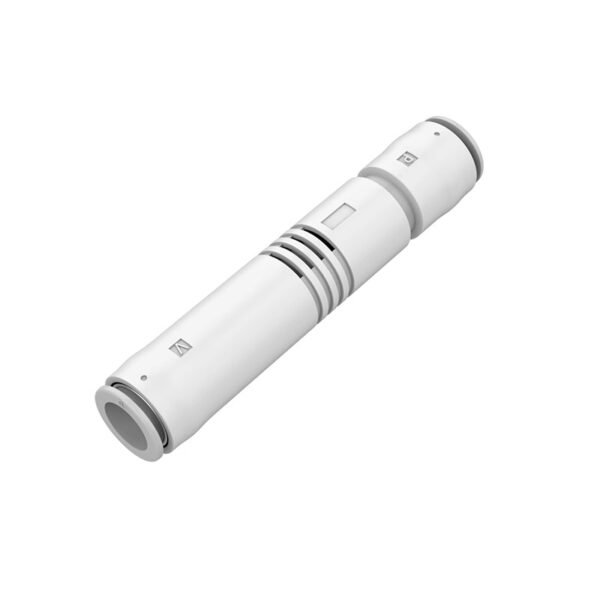

The ZU vacuum generator has significant advantages with a built-in muffler. In terms of noise reduction, it can effectively reduce exhaust noise, provide a quiet working environment, and reduce noise pollution. Its integrated design makes the structure more compact, reduces installation space and steps, enhances stability, reduces exhaust resistance, improves vacuum efficiency and response speed, and extends equipment life. In addition, it reduces procurement and maintenance costs, eliminates the need to purchase mufflers separately, and reduces maintenance points and costs.
| Operating temperature range | −5 to 50°C (No freezing) | |||||
| Fluid | Air | |||||
| Applicable tubing material | FEP, PFA, Nylon, Soft nylon, Polyurethane | |||||
| Operating pressure range | 0.1 to 0.6 MPa | |||||
| Standard supply pressure | ZU03/04 | 0.35 MPa | ||||
| ZU05/07 | 0.45 MPa | |||||
| ZU series S:-85Kpa | |||

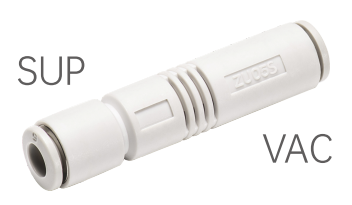

| Product photo | SUP | VAC | Model |
 | Φ4 | Φ4 | ZU05S-4 |
| Φ6 | Φ6 | ZU05S | |
| Φ4 | Φ4 | ZU07S-4 | |
| Φ6 | Φ6 | ZU07S | |
| ZU series L:-48Kpa | |||
| Product photo | SUP | VAC | Model |
 | Φ4 | Φ4 | ZU05L-4 |
| Φ6 | Φ6 | ZU05L-4 | |
| Φ4 | Φ4 | ZU07L-4 | |
| Φ6 | Φ6 | ZU07L | |
